TECTUS® TE 540 3D Concealed Hinge

$260.55$480.60

Features

  • For flush commercial doors
  • 180° opening angle without pinching or damage during opening and closing
  • For doors up to 264 lbs with 2 hinges installed
  • EASILY adjustable in 3-Dimension
  • Maintenance-free slide bearings
  • For wood, metal, or casing frame installation
  • Fire Resistance, Smoke Resistance, Soundproof, Forced Entry Resistance





Clear

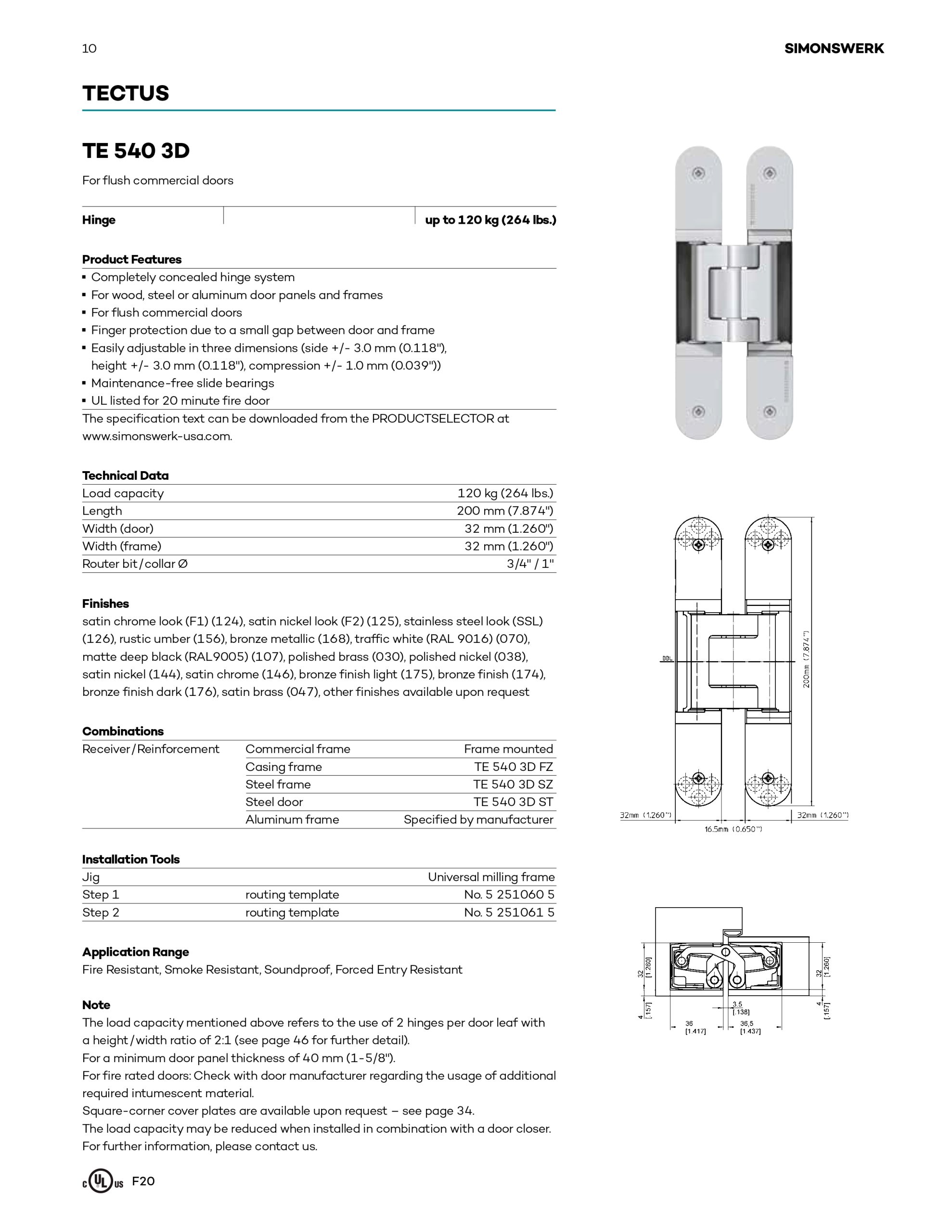

TECTUS® TE 540 3D Concealed Hinge

TECTUS enables the optimal integration of flush doors in straight line and flush surfaces for contemporary clean designs.

The SIMONSWERK TECTUS TE 540 3D concealed hinge is completely hidden for flush doors with wood, steel or aluminum doors and frames.

The three-dimensional adjustability and maintenance-free slide bearing technology of the TE 540 3D hinge system is for use with high-quality commercial doors.

Features

  • For flush commercial doors
  • 180° opening angle without pinching or damage during opening and closing
  • For doors up to 264 lbs with 2 hinges installed
  • EASILY adjustable in 3-Dimension
  • Maintenance-free slide bearings
  • For wood, metal, or casing frame installation
  • Fire Resistance, Smoke Resistance, Soundproof, Forced Entry Resistance

Specifications

  • Minimum door thickness: 1-5/8″
  • Height: 7.874″ [200mm]
  • Width: Frame & Leaf: 1.26″ [32mm]
  • Depth: Frame: 1.42″ [36mm] & Leaf: 1.44″ [36.5mm]
  • UL Listed: 20 minutes

Lead Time

We strive to keep a healthy inventory of this model, please call to check on current stock levels if you require this product quickly. Standard lead time is approximately 2-3 weeks.

**The following finishes are non-cancellable and non-returnable: Satin Brass, Polished Chrome, Polished Brass and Specialized Bronze Finishes. Please review the details to ensure you are ordering the correct hardware.

Special Order Finishes

Expect additional lead time of 3-6 weeks for: Bronze, Light Bronze, Dark Bronze

Weight 0.8 kg
Dimensions 10 × 10 × 5 cm
Finish

bronze (SW174), bronze metallic (168), dark bronze (176), F1 satin chrome look (124), F2 satin nickel look (125), light bronze (175), matte deep black (RAL 9005), polished brass plated (030), polished nickel plated (038), rustic umber (156), Satin Brass, satin chrome plated (146), satin nickel plated (144), stainless steel look (126), traffic white (RAL 9016)
