TECTUS® TE 240 3D Energy Concealed Hinge

$435.58$475.67

Features

  • For flush residential doors
  • Energy hinges preserve all the technical and visual features of the TECTUS® hinge system
  • Easy to fit pluggable/unpluggable reverse-polarity-protected plug connection with integrated tension relief
  • 180° opening angle without pinching or damage during opening and closing
  • For doors up to 88 lbs with 2 hinges installed
  • EASILY adjustable in 3-Dimensions
  • Maintenance-free slide bearings
  • For wood, metal, or casing frame installation
  • Compatible with most designs for electric locks and fittings



Clear
7747FD379-3EF5-4DC3-9AB7-FB895BEEAAF3

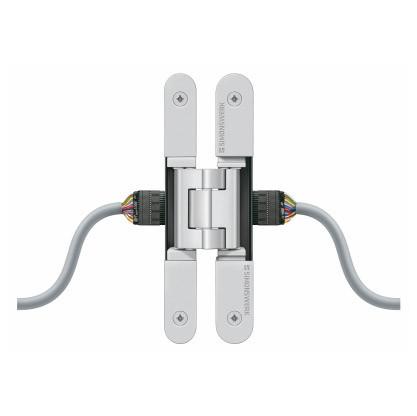

TECTUS® TE 240 3D Energy Concealed Hinge

Today’s modern and efficient buildings often require the ability to control and operate doors remotely. This requires the transfer of electrical power and information from door frames to door panels.

The TECTUS Energy Series provides a sophisticated way to utilize this technology when card readers, access and door control systems, electrified locks, monitoring systems, and multimedia components are installed. The cable with its 16 wires is completely concealed behind the hinge arms to prevent unauthorized tampering.

TECTUS enables the optimal integration of flush doors in a straight line and flush surfaces for contemporary clean designs.

The SIMONSWERK TECTUS TE 240 3D Energy concealed hinge is completely hidden for flush doors with wood, steel or aluminum doors, and frames.

The three-dimensional adjustability and maintenance-free slide bearing technology of the TE 240 3D Energy hinge system is for use with high-quality residential doors.

Required energy cables are sold separately: Each round cable has reverse polarity protected connecting socket for the special ribbon cables: one 3.0 m round cable for the frame; one 3.0 m round cable for door leaf are needed.

For use with TE 240 3D hinges

Features

  • For flush residential doors
  • Energy hinges preserve all the technical and visual features of the TECTUS® hinge system
  • Easy to fit pluggable/unpluggable reverse-polarity-protected plug connection with integrated tension relief
  • 180° opening angle without pinching or damage during opening and closing
  • For doors up to 88 lbs with 2 hinges installed
  • EASILY adjustable in 3-Dimensions
  • Maintenance-free slide bearings
  • For wood, metal, or casing frame installation
  • Compatible with most designs for electric locks and fittings

Specifications

  • Minimum door thickness: 1″
  • Height: 6.1″ [200mm]
  • Width: Frame: .827″ [21mm] & Leaf: .709″ [18mm]
  • Depth: Frame: .945″ [24mm] & Leaf: 1.06″ [27mm]
  • Cable supply: The hinge features a 16-wire integrated ribbon cable with plug connection to round cable at both ends.
  • Max. Voltage: 60 V
  • Max. Current: 0.8 A
  • Material: Zinc-plated mild steel

Lead Time:

Please call to check on current stock levels if you require this product quickly. Standard lead time is approximately 3-6 weeks. Expect additional lead time for Special Order Finishes.

+1-888-636-1627

More Information

Weight 0.8 kg
Dimensions 10 × 10 × 5 cm
Finish

Matte Deep Black, Satin Chrome Look (F1), Stainless Steel Look (SSL)
