TECTUS® TE 640 3D Concealed Hinge

$470.21$865.69



Features

  • For flush high-performance commercial doors
  • 180° opening angle without pinching or damage during opening and closing
  • For doors up to 440 lbs with 2 hinges installed
  • EASILY adjustable in 3-Dimensions
  • Maintenance-free slide bearings
  • For wood, metal, or casing frame installation
  • Fire Resistance, Smoke Resistance, Soundproof, Forced Entry Resistance





Clear

TECTUS® TE 640 3D Concealed Hinge

TECTUS enables the optimal integration of flush doors in a straight line and flush surfaces for contemporary clean designs.

The SIMONSWERK TECTUS TE 640 3D concealed hinge is completely hidden for flush doors with wood, steel or aluminum doors, and frames.

The three-dimensional adjustability and maintenance-free slide bearing technology of the TE 640 3D hinge system is for use with high-quality commercial doors.

Features

  • For flush high-performance commercial doors
  • 180° opening angle without pinching or damage during opening and closing
  • For doors up to 440 lbs with 2 hinges installed
  • EASILY adjustable in 3-Dimensions
  • Maintenance-free slide bearings
  • For wood, metal, or casing frame installation
  • Fire Resistance, Smoke Resistance, Soundproof, Forced Entry Resistance

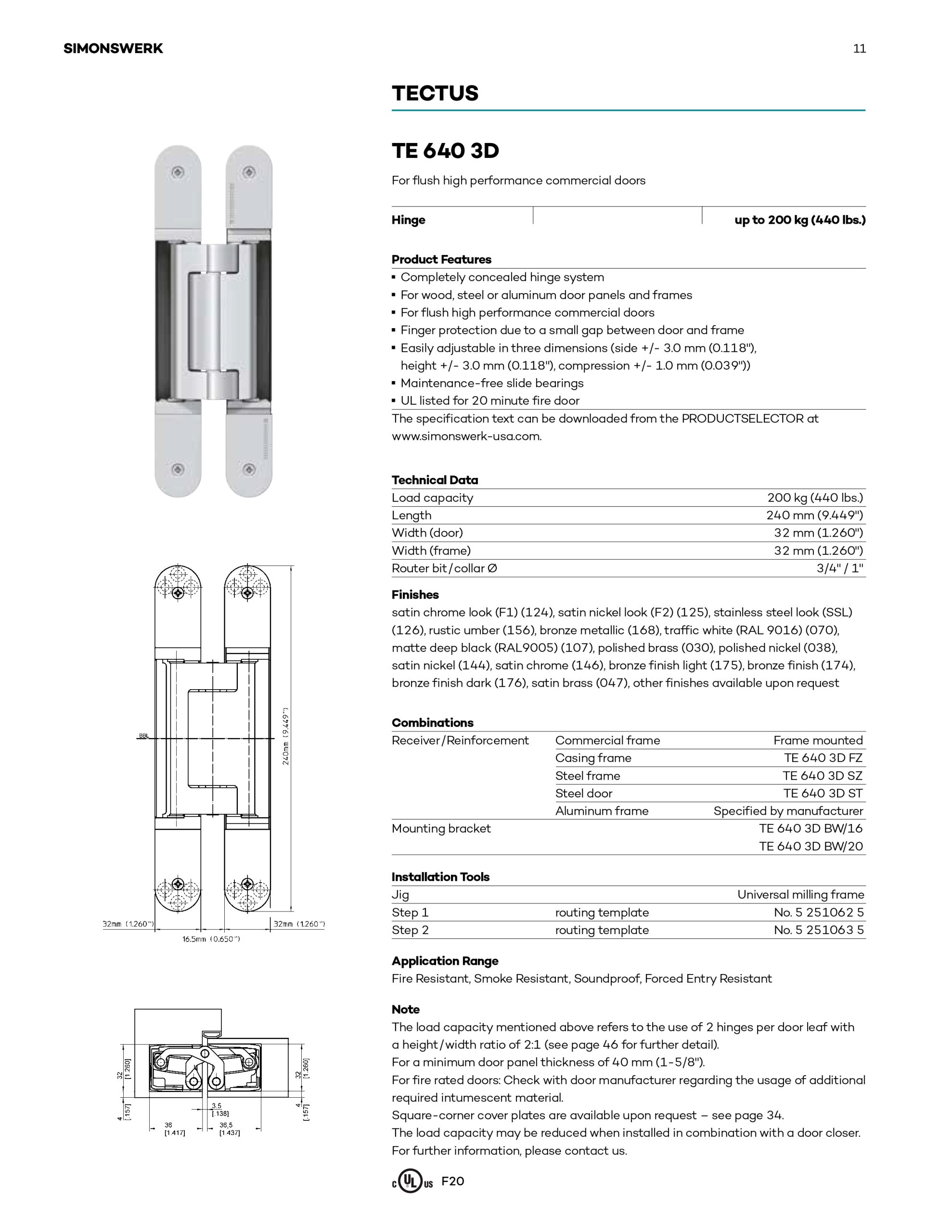

Specifications

  • Minimum door thickness: 1-9/16″
  • Height: 9.45″ [240mm]
  • Width: Frame & Leaf: 1.26″ [32mm]
  • Depth: Frame: 1.42″ [36mm] & Leaf: 1.44″ [36.5mm]

Lead Time:

Please call to check on current stock levels if you require this product quickly. Standard lead time is approximately 3-4 weeks. Expect additional lead time for Special Order Finishes.

**The following finishes are non-cancellable and non-returnable: Satin Brass, Polished Chrome, Polished Brass and Specialized Bronze Finishes. Please review the details to ensure you are ordering the correct hardware.

Weight 0.8 kg
Dimensions 10 × 10 × 5 cm
Finish

Bronze finish Dark (176), Bronze Metallic, matte deep black (RAL 9005), Polished Brass, Polished Nickel, Rustic Umber, Satin Chrome, Satin Chrome Look (F1), Satin Nickel, Satin Nickel Look (F2), Stainless Steel Look (SSL), traffic white (RAL 9016)
