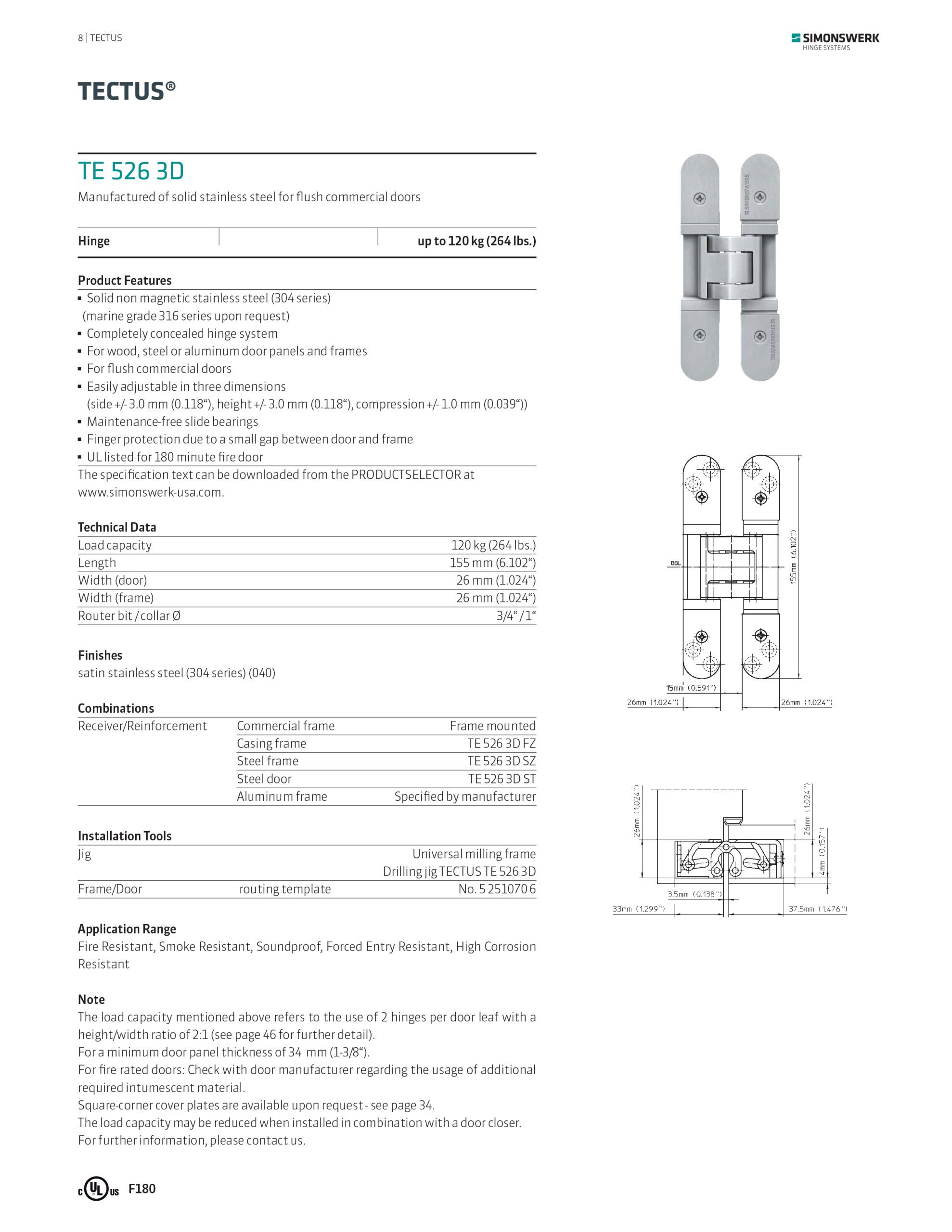

Tectus TE 526 3D Commercial Concealed Hinges
TE 526 3D Manufactured of solid stainless steel for flush commercial doors
Hinge up to 120 kg (264 lbs.)
satin stainless steel (304 series) (040)
The load capacity mentioned above refers to the use of 2 hinges per door leaf with a
height/width ratio of 2:1 (see page 46 for further detail).
For a minimum door panel thickness of 34 mm (13/
For fire rated doors: Check with door manufacturer regarding the usage of additional
required intumescent material.
cover plates are available upon request see
The load capacity
The load capacity may be reduced when installed in combination with a door closer.
For further information, please contact us.
Jig Universal milling frame
Drilling jig TECTUS TE 526 3D
Frame/Door routing template No. 5 251070 6
Load capacity 120 kg (264 lbs.)
Length 155 mm (6.102“)
Width (door) 26 mm (1.024“)
Width (frame) 26 mm (1.024“)
Router bit / collar Ø 3/4“ / 1“
Receiver/Reinforcement Commercial frame Frame mounted
Casing frame TE 526 3D FZ
Steel frame TE 526 3D SZ
Steel door TE 526 3D ST
Aluminum frame Specified by manufacturer
Solid non magnetic stainless steel (304 series)
(marine grade 316 series upon request)
Completely concealed hinge system
For wood, steel or aluminum door panels and frames
For flush commercial doors
Easily adjustable in three dimensions
mm (0.118“), height +/3.0
,mm (0.118“), compression +/1.0
Finger protection due to a small gap between door and frame
UL listed for 180 minute fire door
The specification text can be downloaded from the PRODUCTSELECTOR at
