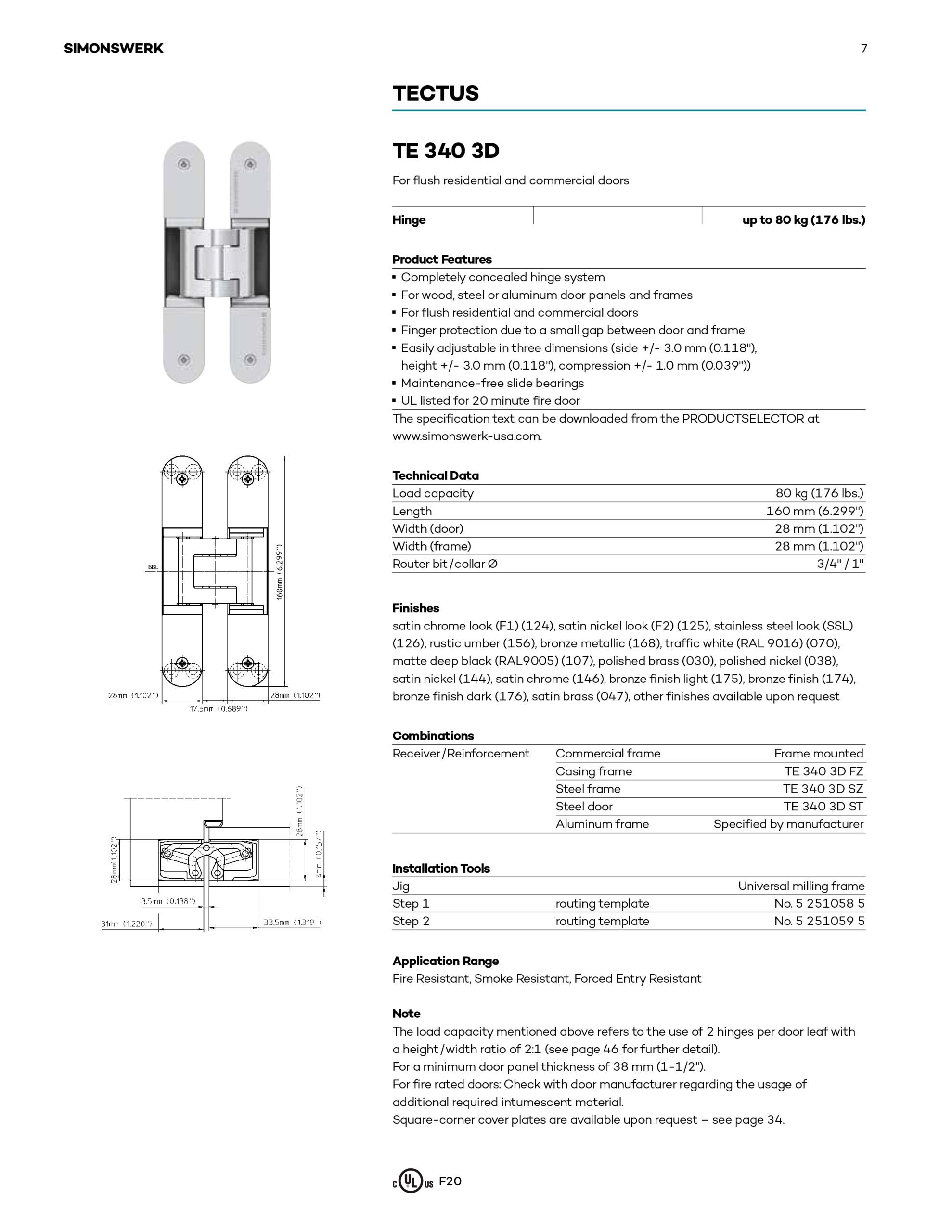

Tectus TE 340 3D Residential Concealed Hinges

TE 340 3D
For flush residential and commercial doors
Hinge up to 80 kg (176 lbs.)
Finishes
satin chrome look (F1) (124), satin nickel look (F2) (125), stainless steel look (SSL) (126),
rustic umber (156), bronze metallic (168), traffic white (RAL 9016) (070), matte deep
black (RAL9005) (107), polished brass (030), polished nickel (038), satin nickel (144),
satin chrome (146), bronze finish light (175), bronze finish (174), bronze finish dark
(176), satin brass (047), other finishes available upon request

The load capacity

mentioned above refers to the use of 2 hinges per door leaf with a
height/width ratio of 2:1 (see page 46 for further detail).
For a minimum door panel thickness of 38 mm (1-1/2“).
For fire rated doors: Check with door manufacturer regarding the usage of additional
required intumescent material.
Square-corner cover plates are available upon request – see page 34.
Installation Tools
Jig Universal milling frame
Step 1 routing template No. 5 251058 5
Step 2 routing template No. 5 251059 5

Product Features

Technical Data
Load capacity 80 kg (176 lbs.)
Length 160 mm (6.299“)
Width (door) 28 mm (1.102“)
Width (frame) 28 mm (1.102“)
Router bit / collar Ø 3/4“ / 1“
Combinations
Receiver/Reinforcement Commercial frame Frame mounted
Casing frame TE 340 3D FZ
Steel frame TE 340 3D SZ
Steel door TE 340 3D ST
Aluminum frame Specified by manufacturer
Product Features
Completely concealed hinge system
For wood, steel or aluminum door panels and frames
For flush residential and commercial doors
Finger protection due to a small gap between door and frame
Easily adjustable in three dimensions
(side +/- 3.0 mm (0.118“), height +/- 3.0 mm (0.118“), compression +/- 1.0 mm (0.039“))
Maintenance-free slide bearings
UL listed for 20 minute fire door
The specification text can be downloaded from the PRODUCTSELECTOR
