TECTUS® TE 240 3D Residential Concealed Hinge
$268.52 – $580.49
Share this:
Tectus TE 240 3D Residential Concealed Hinges
TE 240 3D
For flush residential doors
Finishes
satin chrome look (F1) (124), satin nickel look (F2) (125), stainless steel look (SSL) (126),
rustic umber (156), bronze metallic (168), traffic white (RAL 9016) (070), matte deep
black (RAL9005) (107), polished brass (030), polished nickel (038), satin nickel (144),
satin chrome (146), bronze finish light (175), bronze finish (174), bronze finish dark
(176), satin brass (047), other finishes available upon request
The load capacity mentioned above refers to the use of 2 hinges per door leaf with a
height/width ratio of 2:1 (see page 46 for further detail).For a minimum door panel thickness of 26 mm (1.024“).
Installation Tools
Jig Universal milling frame
Frame routing template No. 5 251074 6
Door routing template No. 5 251075 6
Hinge up to 60 kg (132 lbs.)

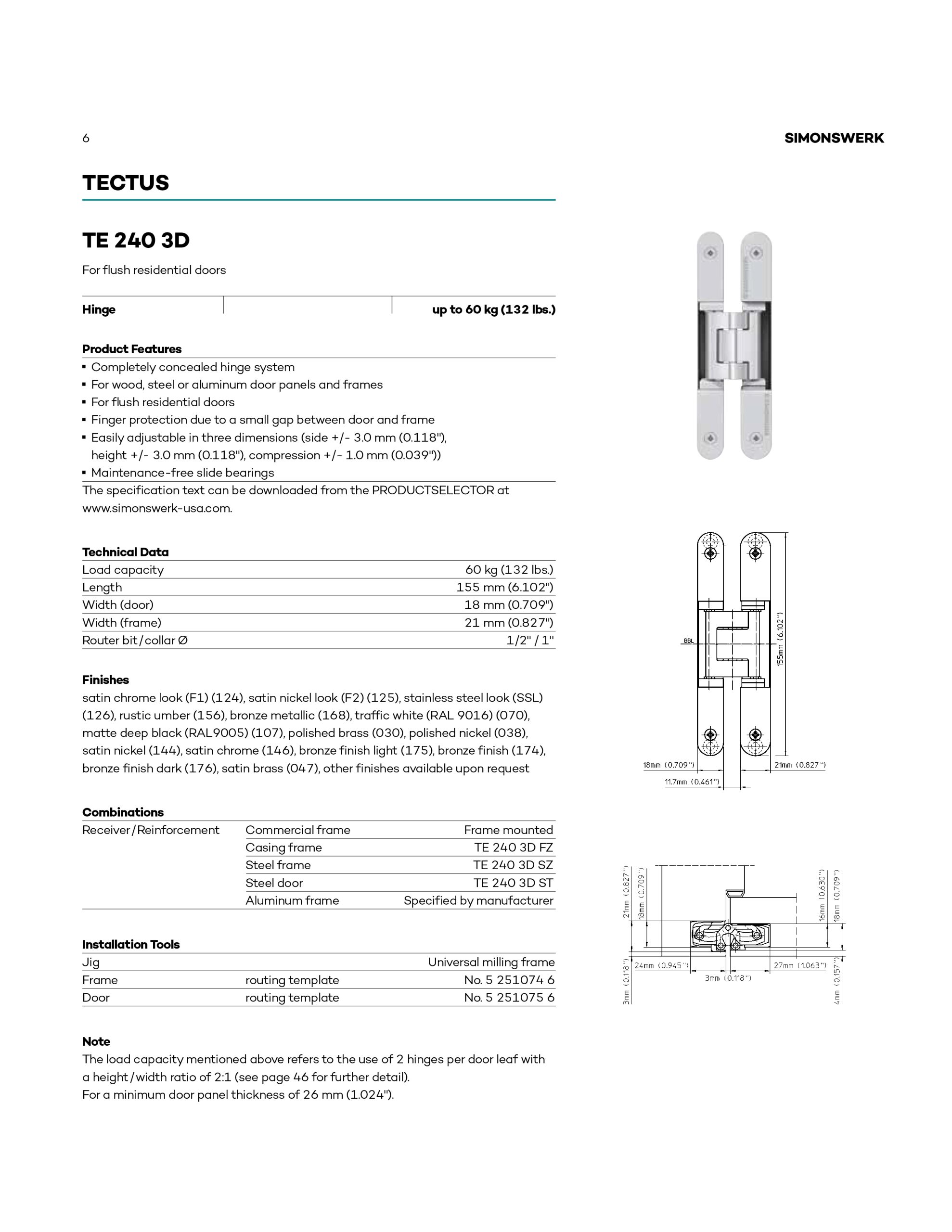

Technical Data
Load capacity 60 kg (132 lbs.)
Length 155 mm (6.102“)
Width (door) 18 mm (0.709 “)
Width (frame) 21 mm (0.827“)
Router bit / collar Ø 1/2“ / 1“
Combinations
Receiver/Reinforcement Commercial frame Frame mounted
Casing frame TE 240 3D FZ
Steel frame TE 240 3D SZ
Steel door TE 240 3D ST
Aluminum frame Specified by manufacturer
Product Features
Completely concealed hinge systemFor wood, steel or aluminum door panels and frames
For flush residential doors
Finger protection due to a small gap between door and frame
Easily adjustable in three dimensions
(side +/- 3.0 mm (0.118“), height +/- 3.0 mm (0.118“), compression +/- 1.5 mm (0.059“))
Maintenance-free slide bearings
The specification text can be downloaded from the PRODUCTSELECTOR at
www.simonswerk-usa.com.
| Weight | .8 lbs |
|---|---|
| Dimensions | 10 × 10 × 5 in |
| Colour / Finish | Satin Chrome Look (F1), Satin Nickel Look (F2), Stainless Steel Look (SSL), Traffic White, Matte Deep Black, Rustic Umber, Bronze Metallic, Satin Brass, Polished Brass, Polished Nickel, Satin Nickel, Satin Chrome, Polished Chrome, Bronze Finish, Bronze Finish Light, Bronze Finish Dark |
