Richelieu CS Cavity Sliders Pocket Door Kit
$1,109.58 – $1,534.80
Richelieu CS Cavity Sliders Pocket Door Kit
Aluminum double wall frame structure
The CS Cavity Sliders Pocket Door Frame is only for single sliding doors weighing
for single sliding wood doors weighing up to 200 lb (90 kg) and 500 lb (227 kg) each
Share this:
Richelieu CS Cavity Sliders Pocket Door Kit
Richelieu CS Cavity Sliders Pocket Door Kit
DESCRIPTION
The CS Cavity Sliders Pocket Door Kit is designed for single sliding wood doors weighing up to 200 lb (90 kg) and 500 lb (227 kg) each. Made for standard 2 x 4 wood and metal wall stud construction.
Features:
Choose from three types of kits for various door widths and heights:
– Door widths of 36 in (914 mm) and 48 in (1.2 m)
– Door heights of 80 in (2 m) and 96 in (2.4 m)
Two types of carriage/hardware sets with one stopper to choose from:
– M6 for 200 lb (90 kg) door
– M8 for 500 lb (227 kg) door
– CarriSnap mounting suspension plate for the top of the door for mounting and releasing the upper trolley without tools
– Sturdy double wall aluminum pocket frame structure can be cut to size to accommodate different door widths and heights
– Low profile upper track is part of the structure of the pocket frame
– Trim clips for easy press-on mounting for door jamb trim
– Pivoting bottom guide to ease loading the door into the pocket frame during installation
– Large wheel trolleys with precision ground bearings for smooth running
– Simple and flexible low-cost installation
– Cut a groove bottom of the door to conceal floor guide
For soft-close options, refer to the CS Cavity Sliders Pocket Door System in the Suggested Products section below.
For bi-parting applications use connecting pin item no. ZK00305 to line up and connect two systems.

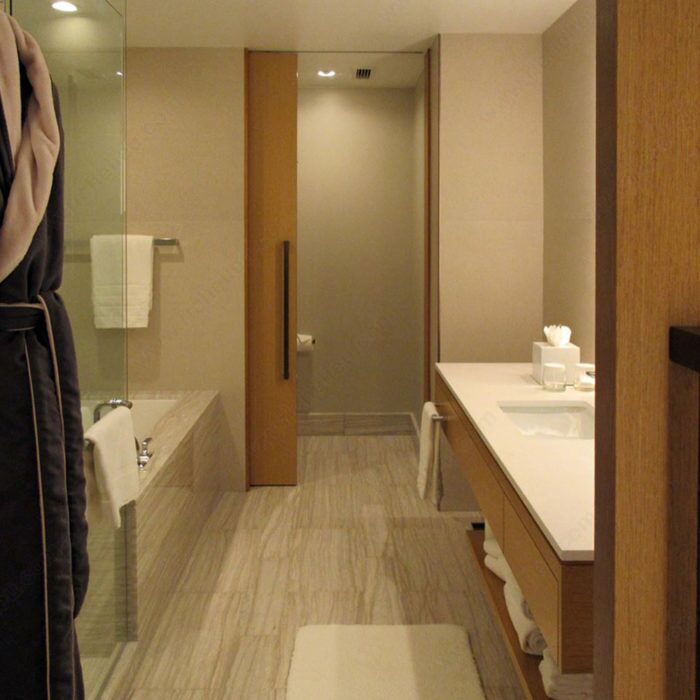

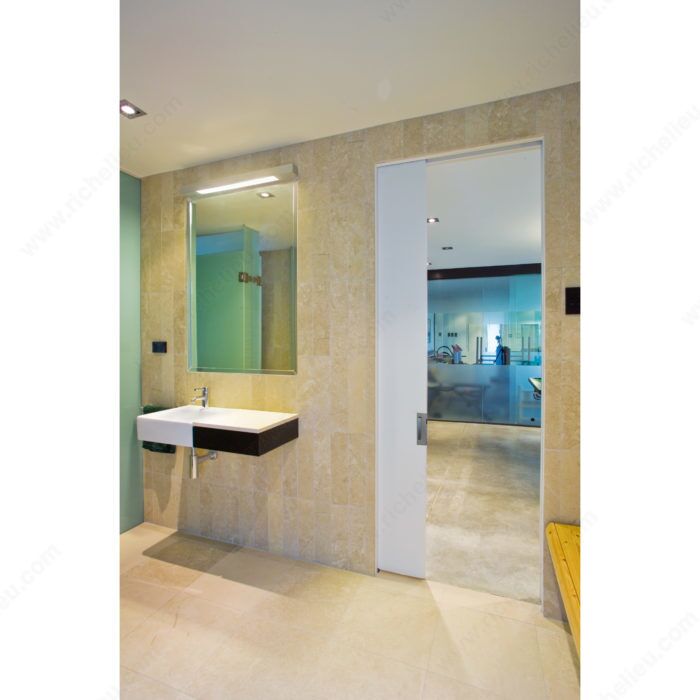

Ideal for residential, commercial, and institutional projects for a wide variety of applications, such as doorways for bedrooms, washrooms, utility rooms, offices, etc.
TECHNICAL SPECIFICATIONS
Wood
Door Movement
Pocket Door
Detailed Door Movement
Single sliding
Track Mounting
Ceiling Mount
Brand
Cavity Sliders
Packaging Format
Box
Number of Doors
1
Door Thickness
1 3/8 to 1 3/4 in
Soft-Closing
No
Stopper
One
Roller Type
Ball Bearing
Roller Position
Upper
Track Material
Anodized Aluminum
Displayed in These Showrooms
Mississauga
Product type
Pocket Door
Track Finish
Anodized
Track type
Box Track
Running Track Fixing
Recessed
Set Screws Included
No
Groove Width at the Bottom of Door
1/4 in
Groove Depth
1 in
Drilling
1 in
Drilling Depth
1/2 in
Groove Needed for Guiding System
Yes
Adjustable
Yes
Door Installation
Top Hung
Material
Aluminum
Door Position
Pocket Door
Function
Sliding Door
ADVANTAGES AND BENEFITS
– Sturdy double wall aluminum pocket frame structure can be cut to size to accommodate different door widths and heights
– Low profile upper track is part of the structure of the pocket frame
– Trim clips for easy press-on mounting for door jamb trim
– Pivoting bottom guide to ease loading the door into the pocket frame during installation
INCLUDED PRODUCT(S)
– Aluminum double wall frame structure
– Upper track
– 2 upper trolleys
– 2 CarriSnap mounting suspension plates
– Track stopper
– Floor guide
– Adjustment tool
– Screws and fasteners for individual components only
IMPORTANT INFORMATION
A groove is required for the bottom of the door for the floor guide, see instructions.
Always remove debris/dust/residues (sawdust and/or aluminum) from all tracks and guide channels using a dry cloth during installation and before operating the system.
Never spray lubricant on this product.
Do not exceed stated limitations and parameters. This will cause early wear and performance failure.
