Richelieu CS Cavity Sliders Pocket Door Frame
DESCRIPTION
Double wall aluminum frame
The CS Cavity Sliders Pocket Door Frame is only for single sliding doors weighing from 40 lb (90 kg) to 500 lb (227 kg) each. Made for standard 2 x 4 wood and metal wall stud construction.

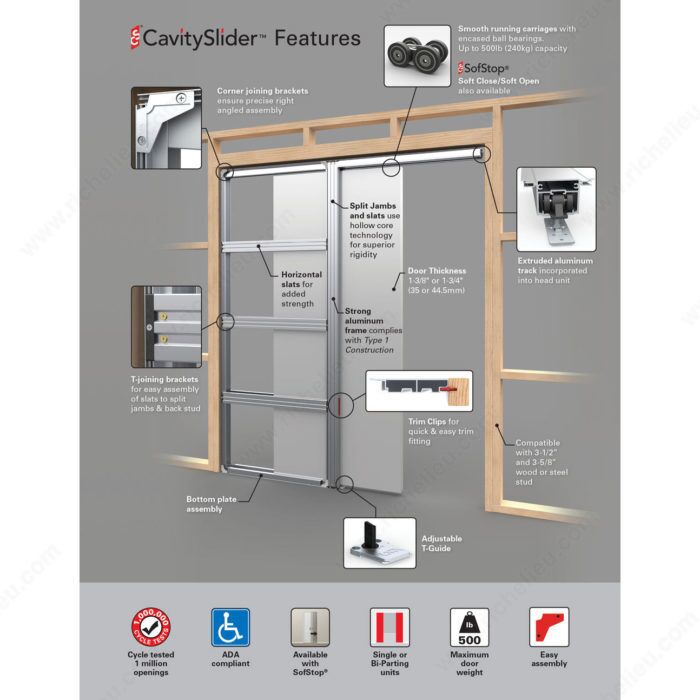

Features:
– Precut sturdy double wall aluminum pocket frame structure made for a wide range of door sizes from 30 in (762 mm) to 48 in (1.21 m) wide, and 80 in (2.03 m) to 96 in (2.43 m) tall
– Frames can be custom cut to accommodate other door widths and heights for your project, min. 24 in (610 mm)
– Compatible with CS M6, M8, and SofStop carriage/hardware sets
– Low profile upper track is part of the upper structure of the pocket frame
– Trim clips for easy press-on mounting for door jamb trim
– Simple and flexible low-cost installation
Ideal for residential, commercial, and institutional projects for a wide variety of applications.
TECHNICAL SPECIFICATIONS
Door Material
Wood
Door Thickness
1 3/8 to 1 3/4 in
Compatible with
Cavity Sliders
Door Installation
Top Hung
Running Track Fixing
Recessed
Packaging Format
Box
Product Type
Pocket Door Frame Structure
Material
Aluminum
Track Material
Aluminum
Door Position
Pocket Door
Number of Doors
1
Roller Position
Upper
Track Mounting
Ceiling Mount
Door Movement
Pocket Door
Brand
Cavity Sliders
Detailed Door Movement
Single Sliding, Pocket Door
Weight Capacity per Panel
500 lb
ADVANTAGES AND BENEFITS
– Sturdy double wall aluminum pocket frame structure can be cut down to accommodate customized door widths and heights
– Low profile upper track is part of the structure of the pocket frame
– Trim clips for easy press-on mounting for door jamb trim
INCLUDED PRODUCT(S)
Included in main box:

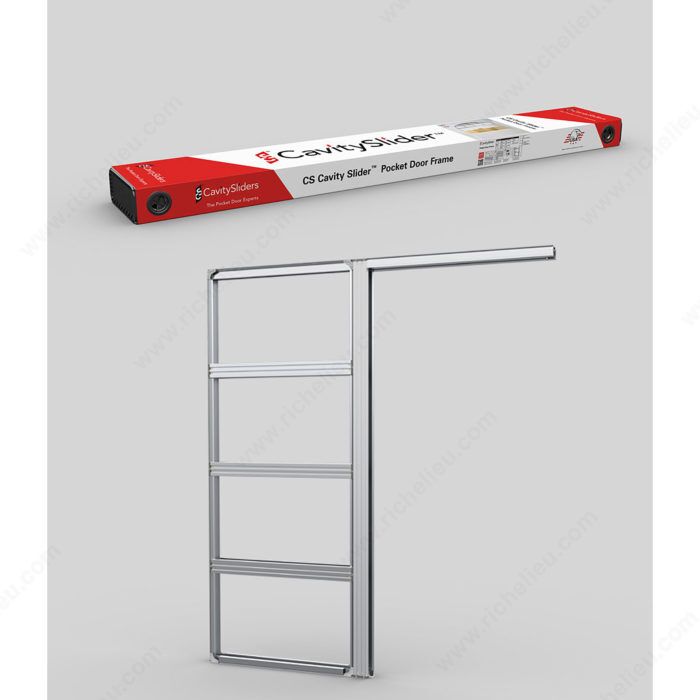

– Aluminum double wall frame structure
– Connector brackets
– Top and bottom fixing block profiles
– Horizontal structure profiles
– Upper track
– Floor guide
IMPORTANT INFORMATION
For 3/4 in (19 mm) jamb thickness. #8 screws and appropriate anchors required for installation (not included). A groove is required for the bottom of the door for the floor guide, see instructions. Wear safety gear such as gloves, safety glasses, safety shoes, and ear protection. See the instructions for rough opening and other dimensions.
DISCLAIMER
Please make sure to read the entirety of the installation manual before proceeding with the installation. For 3/4 in (19 mm) jamb thickness. #8 screws and appropriate anchors required for installation (not included). A groove is required for the bottom of the door for the floor guide, see instructions. Wear safety gear such as gloves, safety glasses, safety shoes, and ear protection. See the instructions for rough opening and other dimensions.
Attention
Do not exceed stated limitations and parameters. This will cause early wear and performance failure, and will void the warranty. – Pictures provided for visual reference only: actual product may vary. – All required hardware should be ordered and obtained prior to initiating fabrication or installation work. Please verify that the parts and quantities listed in your order are correct before proceeding to checkout. – Always use instructions provided by the manufacturer, as included with the product. Manufacturer reserves the right to amend, modify, or otherwise supplement any previously issued product and/or technical information, as deemed required from time to time, without prior notice. – The documentation, drawings, and instructions on this page apply to the system described on this page only. Richelieu expressly declines all responsibility for any design or construction that combines this system with systems from this same manufacturer or systems from other manufacturers. – Installation of the product shall be executed by qualified individuals only, always ensuring that each product is securely installed using proper fixation methods, as appropriate for each applicable substratum. We trust that anyone installing these products has the required skills, knowledge, and experience. Richelieu expressly disclaims any liabilities for results obtained through improper use or installation. – Always remove debris/dust/residues (sawdust and/or aluminum) from all tracks and guide channels using a dry cloth during installation and before operating the system. – Never spray lubricant on this product.
