Dorex DMDB SERIES GRADE 1

$59.99

SKU: DMDB SERIES GRADE 1 Categories: COMMERCIAL DOOR LOCKS, COMMERCIAL HARDWARE, Dorex Tag: Dorex

Dorex DMDB SERIES GRADE 1

Function
Trim options
Finish	Clear

Description
Additional information

Canada Door Supply

Dorex DMDB SERIES GRADE 1

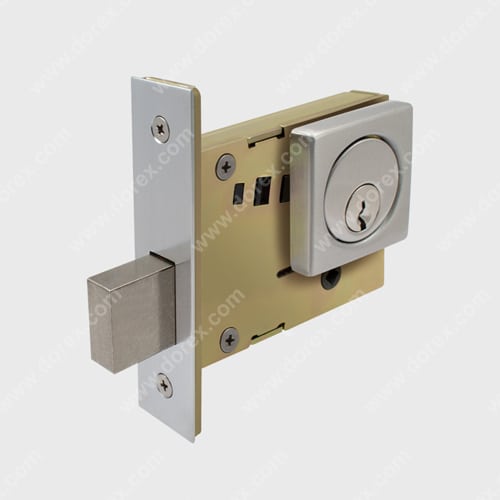

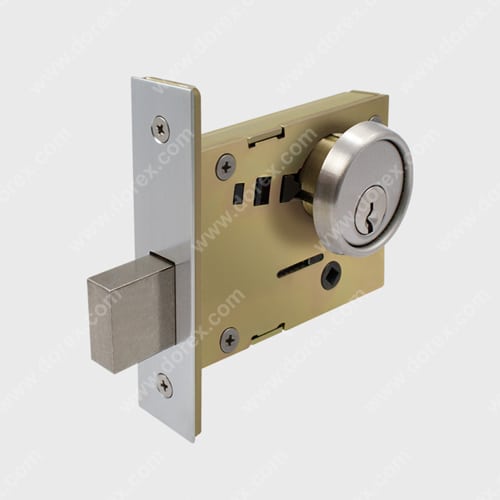

Heavy-duty mortised deadbolt door lock for enhanced security applications.

Conforms to ANSI/BHMA A156.5, Grade 1
cULus listed, 3 hr fire rating
5-Year limited warranty
For doors at least 1³⁄₈″ (35 mm) thick
Non-handed
2³⁄₄″ (70 mm) backset
Deadbolt, ¹⁄₂ x 1″ (12.7 x 25.4 mm) with 1″ (25.4 mm) throw
Strike, dust-box, faceplate and mounting hardware included
Square or round cylinder collar with inside thumb-turn trim available, sold separately
Conventional or high-security mortise cylinder available, sold separately
Small Format Interchangeable Core (SFIC) housing mortise cylinder available (BEST® and CX5® cores sold separately)

Weight	2 kg
Dimensions	20 × 10 × 5 cm
Function	Double cylinder, Single cylinder only, Single cylinder, with thumbturn, Thumbturn only
Trim options	Round Rose, Square Rose
Finish	26D SATIN CHROME, C15 SATIN NICKEL
