Dorex DM SERIES GRADE 1

$359.99$659.99

SKU: DM SERIES GRADE 1 Categories: , , Tag:

DorexDorex DM SERIES GRADE 1

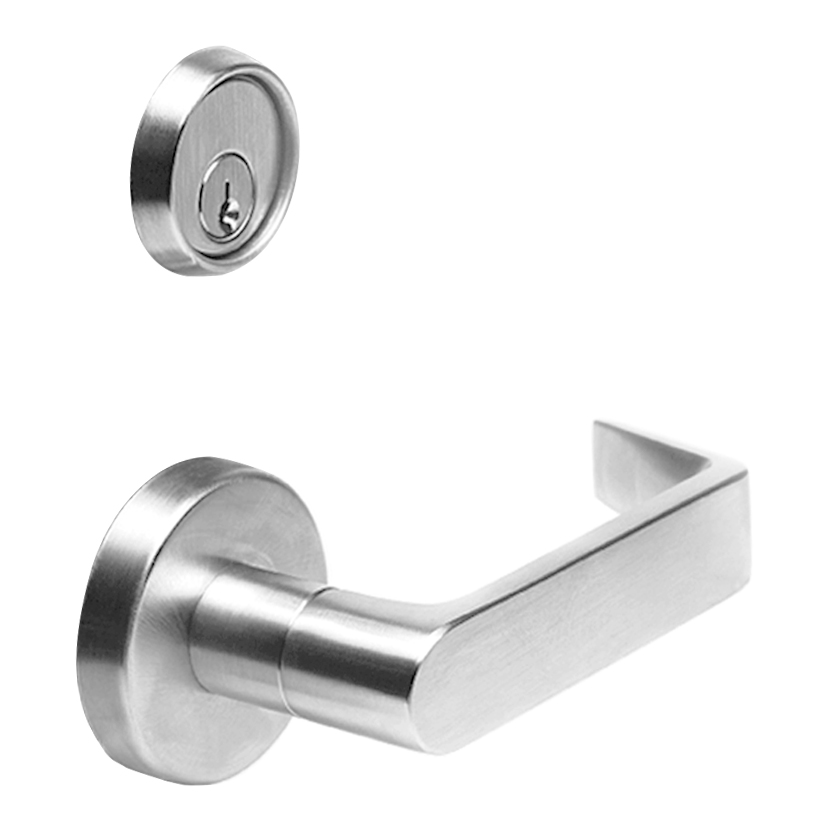

The DOREX DM is a premium, heavy-duty, mortise lock that is available in a wide variety of trim and handle styles.

Ideal for commercial or residential applications with high traffic and/or enhanced security requirements.



Clear

Dorex DM SERIES GRADE 1

  • Conforms to ANSI/BHMA A156.13, Series 1000, Grade 1
  • cULus listed, 3 hr fire rating
  • UL10C Positive Pressure Rated
  • ADA Compliant levers
  • 5-Year limited warranty
  • For doors 134 –214″ (45 – 57 mm) thick*
  • Handed, field reversible
  • 234″ (70 mm) backset
  • Faceplate adjusts for bevelled doors
  • Brass, 2 piece latchbolt with 34″ (19 mm) throw
  • Deadbolt functions include brass deadbolt with two security pins; 1″ (25.4 mm) throw
  • Adjustable faceplate for bevelled doors
  • Single action egress

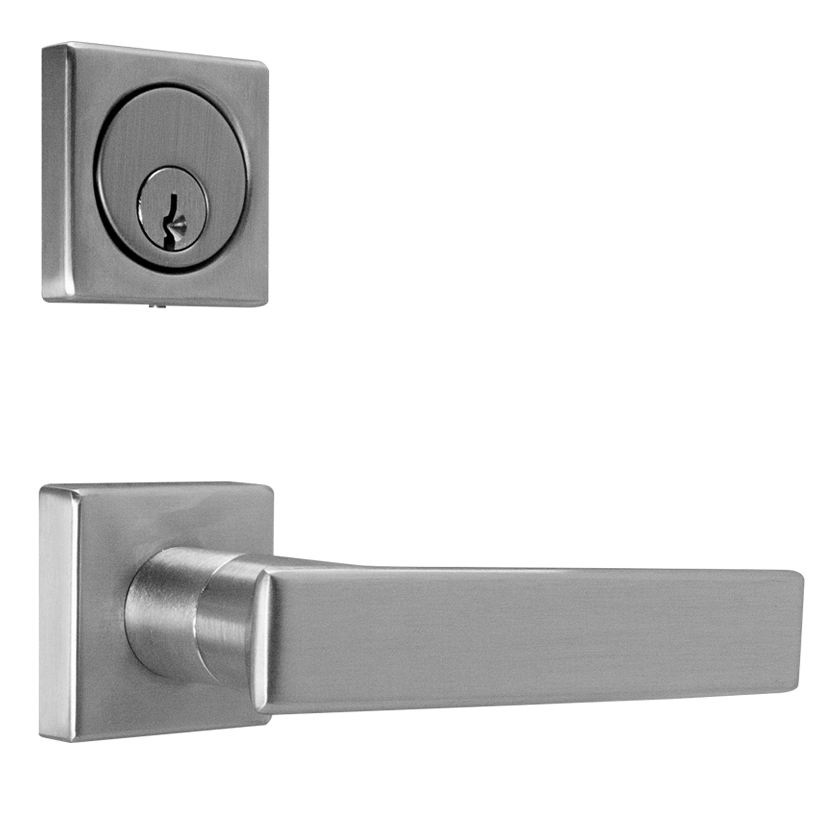

  • Square or round rose trim available

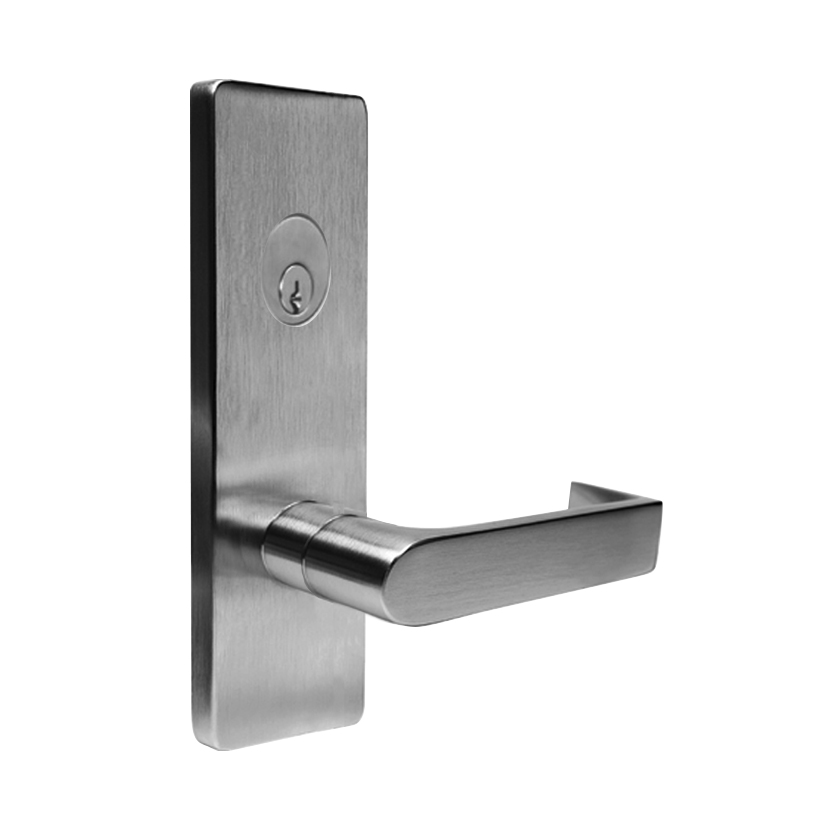

  • Three (3) escutcheon sizes available

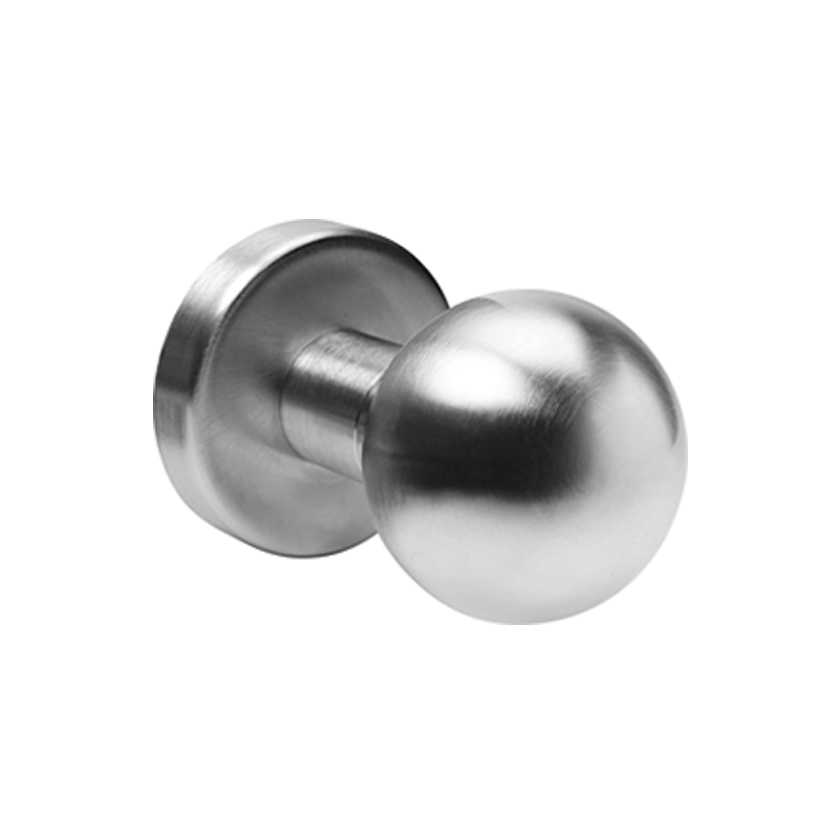

  • Contemporary lever and knob styles available
  • Strike and dust box
  • Keyed functions include 6-pin mortise cylinder, Schlage “C” keyway with 2 keys
  • Small format interchangeable core (SFIC) mortise cylinder available (SFIC sold separately)
Full keying services available. Other common and high security keyways available. (*) Kit required for thicknesses greater than 2″ (51 mm)
Weight 8 kg
Dimensions 20 × 10 × 5 cm
Function

Back-to-Back dummy (Double dummy), Classroom, Dormitory, Entrance, Office, Passage, Privacy, Single dummy, Storeroom, Storeroom with deadbolt

Finish

26D SATIN CHROME, C15 SATIN NICKEL

Lever / Knob Styles

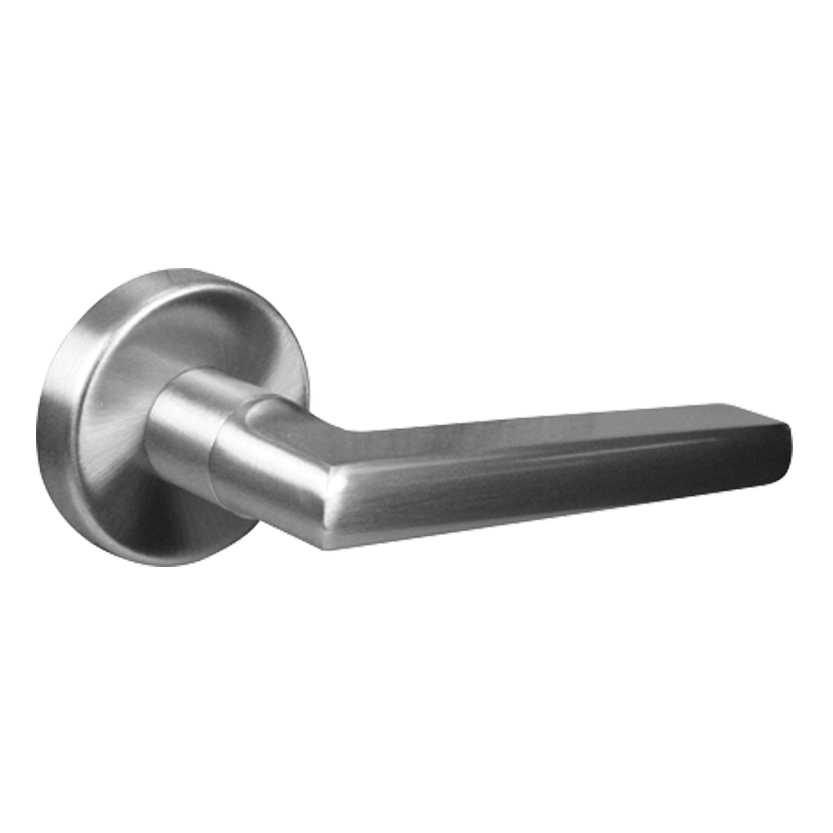

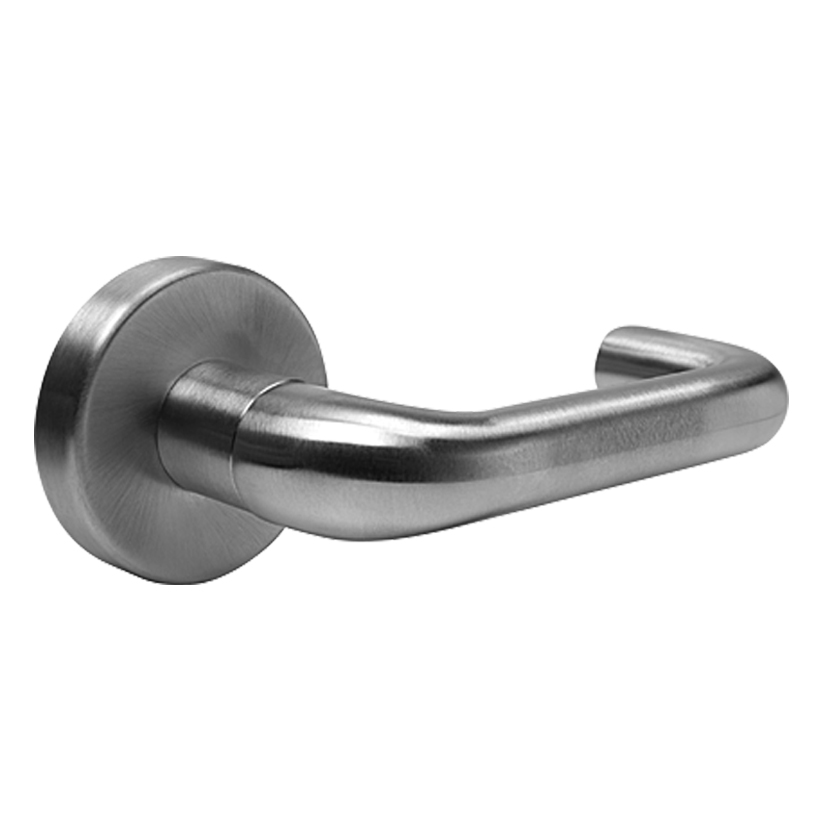

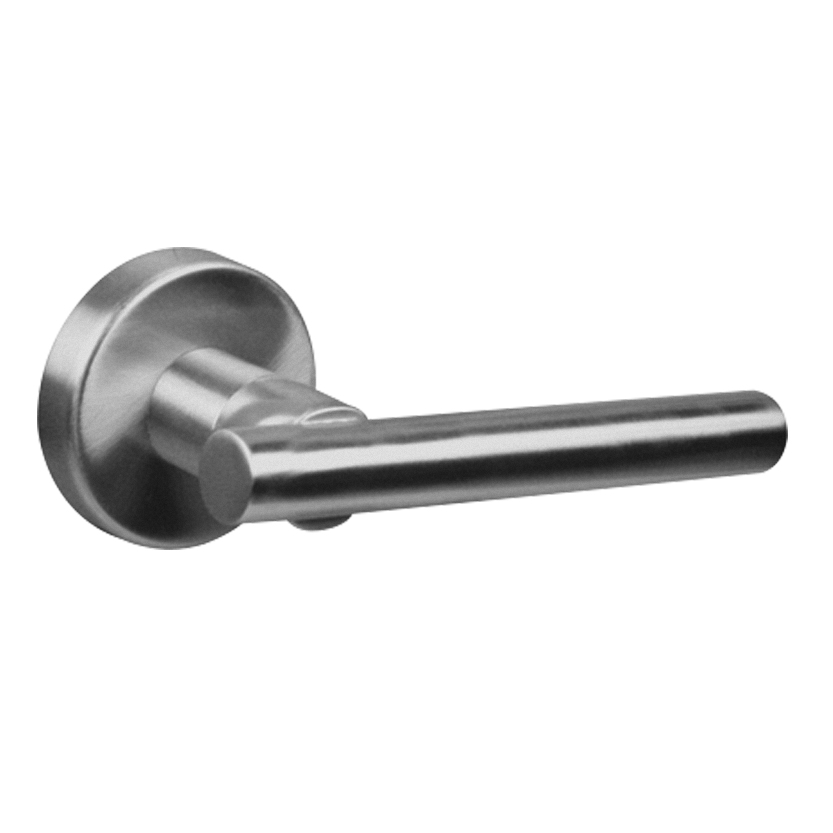

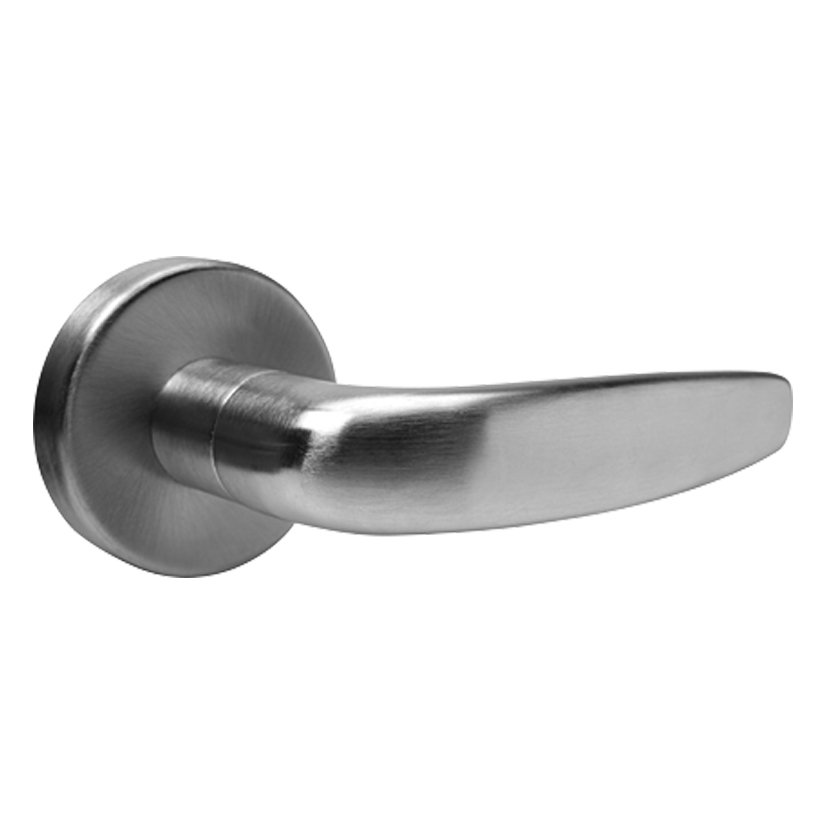

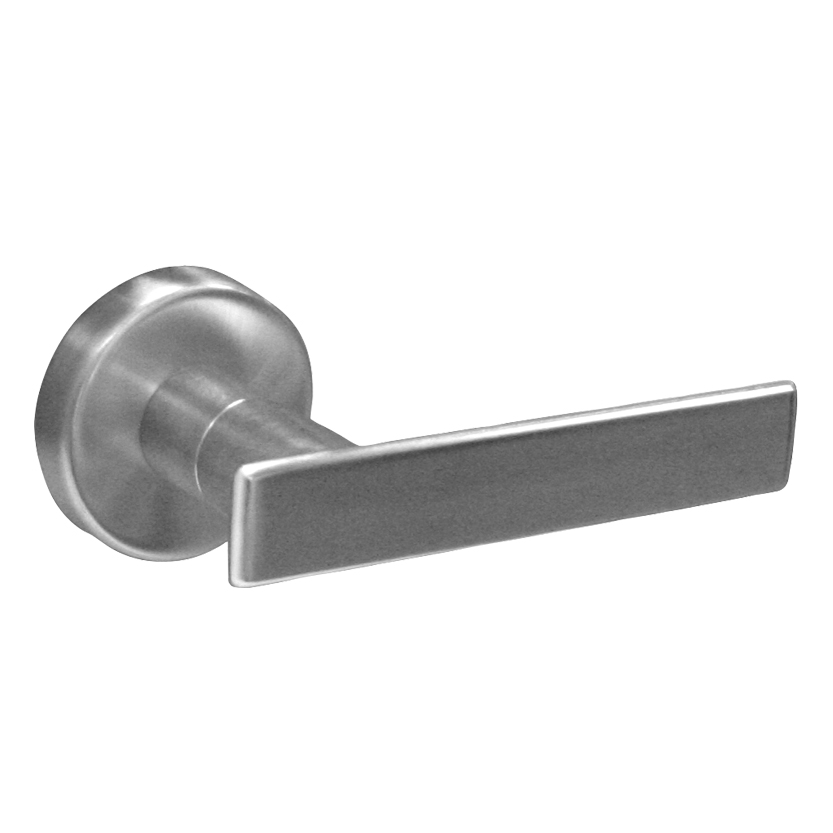

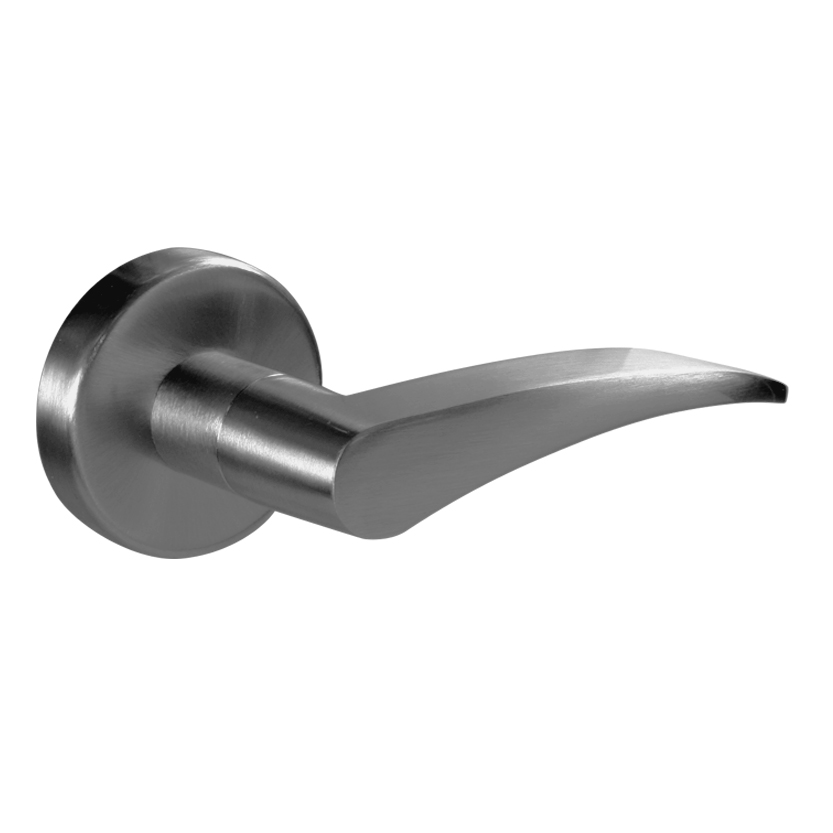

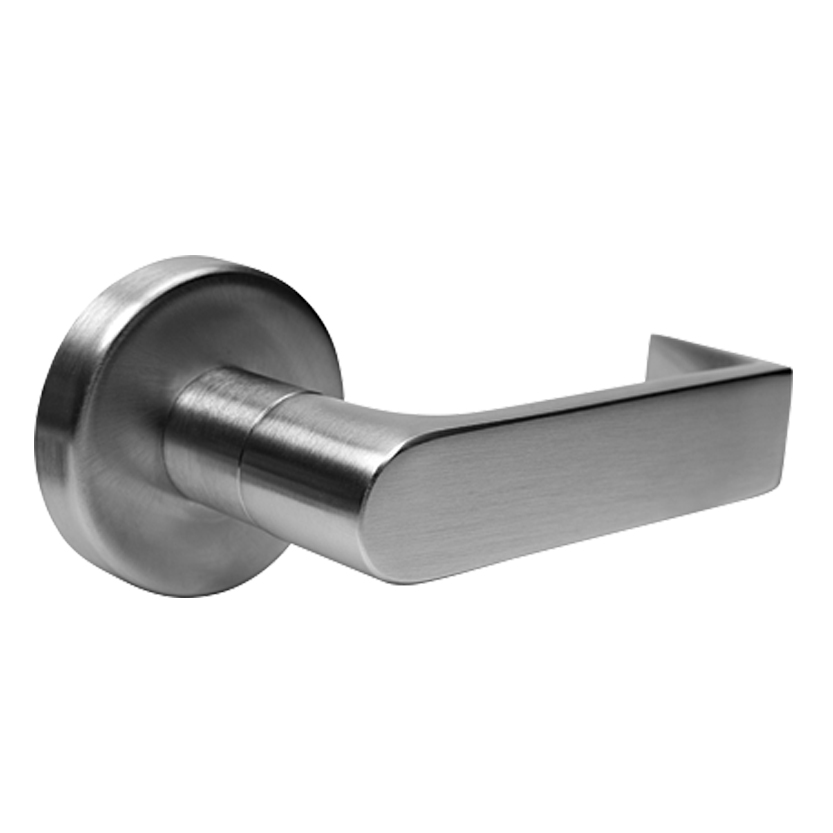

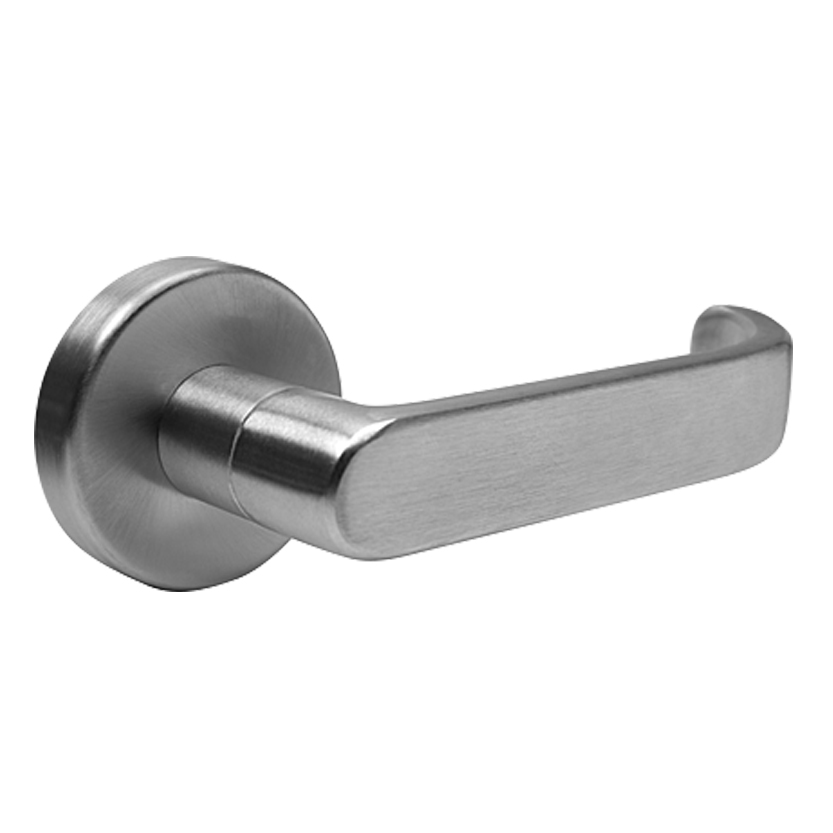

Apollo, Circa, Cornell, Dartmouth, Glasgow, Kent, Linea, Stanford, The flat

Trim options

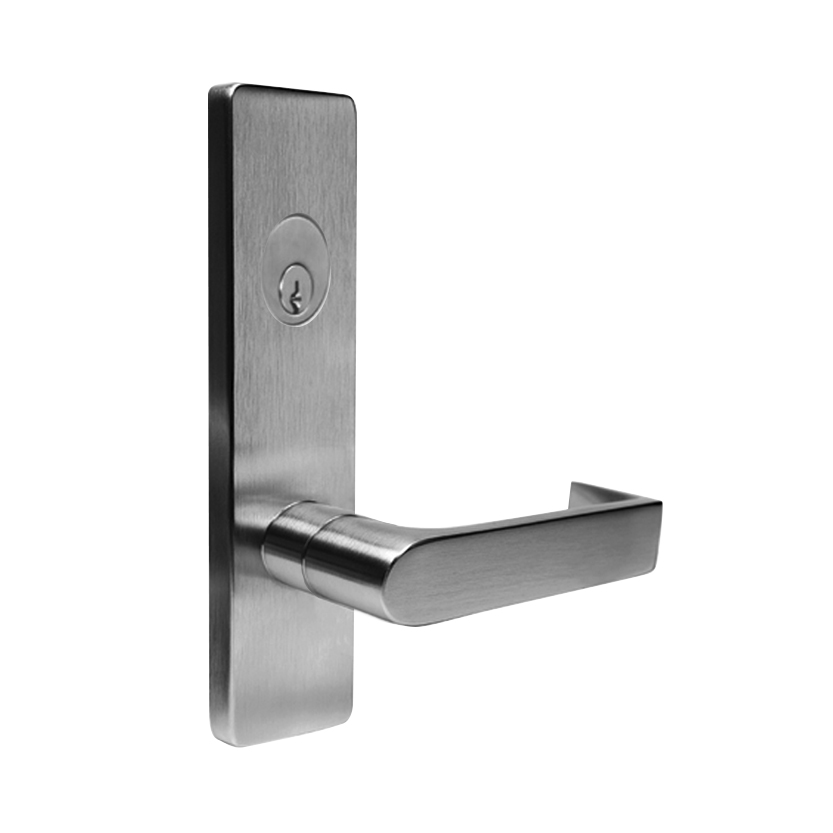

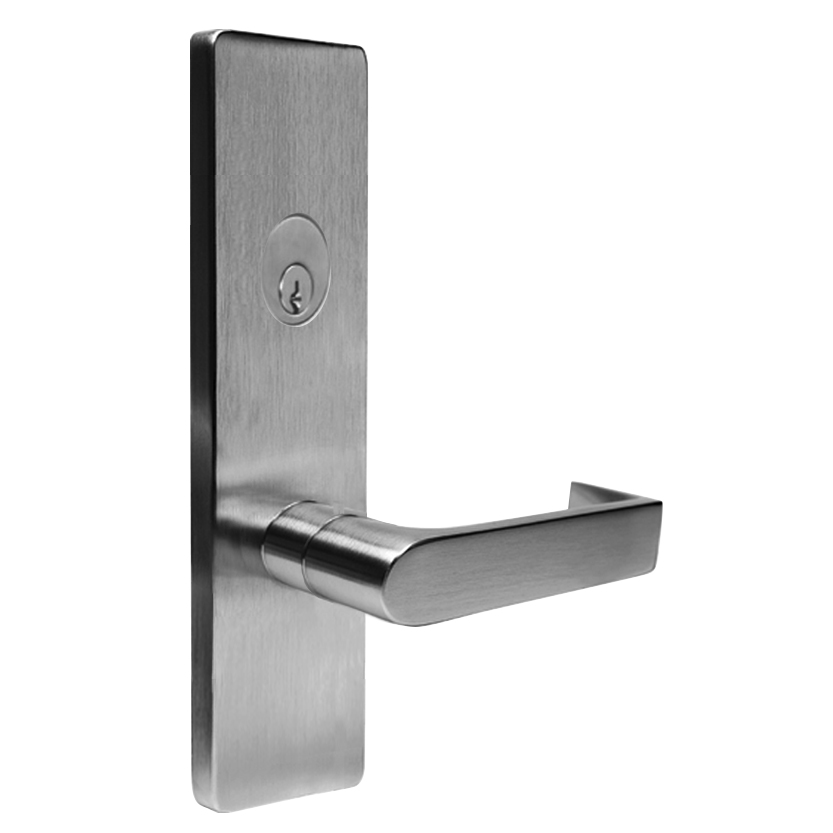

Large Escutcheon, Regular Escutcheon, Round Rose, Square Rose, Wide Escutcheon

Handing

LH Left Hand, RH Right Hand
