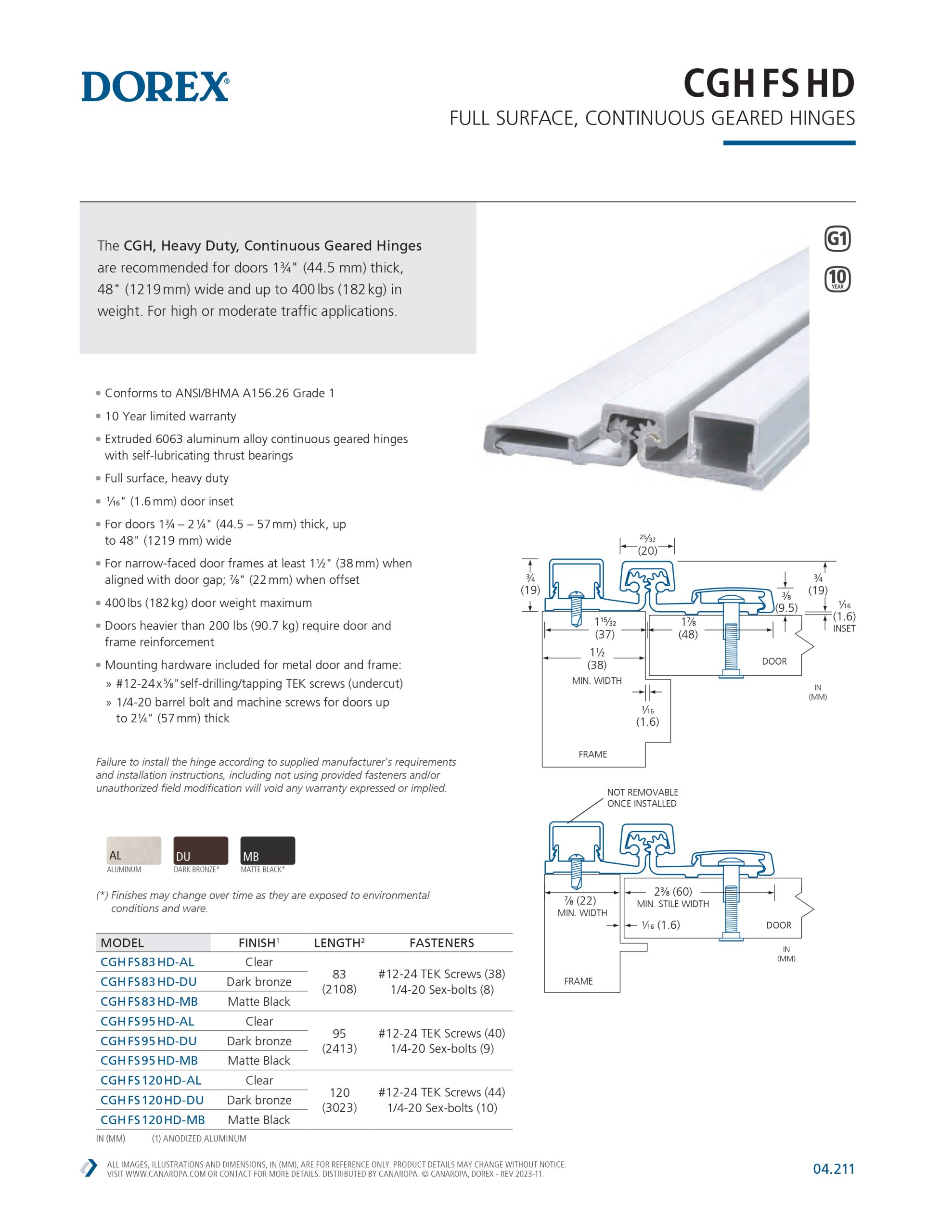

Dorex CGHFS-HD Full Surfase Continuous Geared Hinge
Price range: $299.99 through $574.99
Dorex CGHFS-HD Full Surfase Continuous Geared Hinge
- SOLD INDIVIDUALLY
- The CGH, Heavy Duty, Continuous Geared Hinges are recommended for doors
13⁄4″ (44.5 mm) thick, 48″ (1219 mm) wide and up to 400 lbs (182 kg) in weight.
For high or moderate traffic applications. - See more options in our Shop, or visit your Cart To check out!
- For More information or help with your order. Contact Us
Share this:
Dorex CGHFS-HD Full Surfase Continuous Geared Hinge
Dorex CGHFS-HD Full Surfase Continuous Geared Hinge
Dorex CGHFS-HD Full Surfase Continuous Geared Hinge
Features
- Conforms to ANSI/BHMA A156.26 Grade 1
- 10 Year limited warranty
- Extruded 6063 aluminum alloy continuous geared hinges
- with self-lubricating thrust bearings
- Full surface, heavy duty
- 1⁄16” (1.6 mm) door inset
- For doors 13⁄4 – 21⁄4″ (44.5 – 57 mm) thick, up to 48″ (1219 mm) wide
- For narrow-faced door frames at least 11⁄2” (38 mm) when aligned with door gap; 7⁄8” (22 mm) when offset
- 400 lbs (182 kg) door weight maximum
- Doors heavier than 200 lbs (90.7 kg) require door and frame reinforcement
- Mounting hardware included for metal door and frame
- » #12-24 x 5⁄8” (16 mm) self-drilling/tapping TEK screws (undercut)
» 1⁄4″-20 Sex bolt and machine screws for doors up to 21⁄4″ (57 mm) thick
Item is Brand New!!
Account Options
Allow up to 12 days for Delivery on all Orders unless specifeied.
Please read our terms and conditions before purchase.
If you need help You Can Contact us at 1-416-628-1297
Canada Door Supply is Located at
OUR DOOR HARDWARE TORONTO PRODUCTS
INTERIOR DOORS
Canada Door Supply can offer you the most innovative interior doors that can suit your taste, personality, and standards. We have a wide variety of interior doors that can perfectly suit your needs. Our interior doors are made from top quality materials to ensure its long-lasting efficiency. You can choose from our Wood (solid core) and MDF (solid core) interior doors.
ENTRY DOORS
Our entry doors have beautiful and elegant designs that are truly appealing to the eyes.
DOOR HARDWARE
%45 restocking Fee on all returns please check orders carefully.
Door Hardware Toronto can provide you with products that pass through high standards and safety. We don’t want to disappoint our customers, so we make sure that you only receive the door products that are strong and can last for many years. we carry many products like Baldwin, Colombo, and Appliance Pulls plus many more Emtek, Top Knobs, Dorex, Amerock
| Weight | 20 lbs |
|---|---|
| Dimensions | 120 × 5 × 4 in |
| Finish / Colour | Aluminum Clear (AL), Matte Black Anodized (MB), Dark Bronze (DU) |
| Size (inches) | 83" inches, 95" inches, 120" inches |
