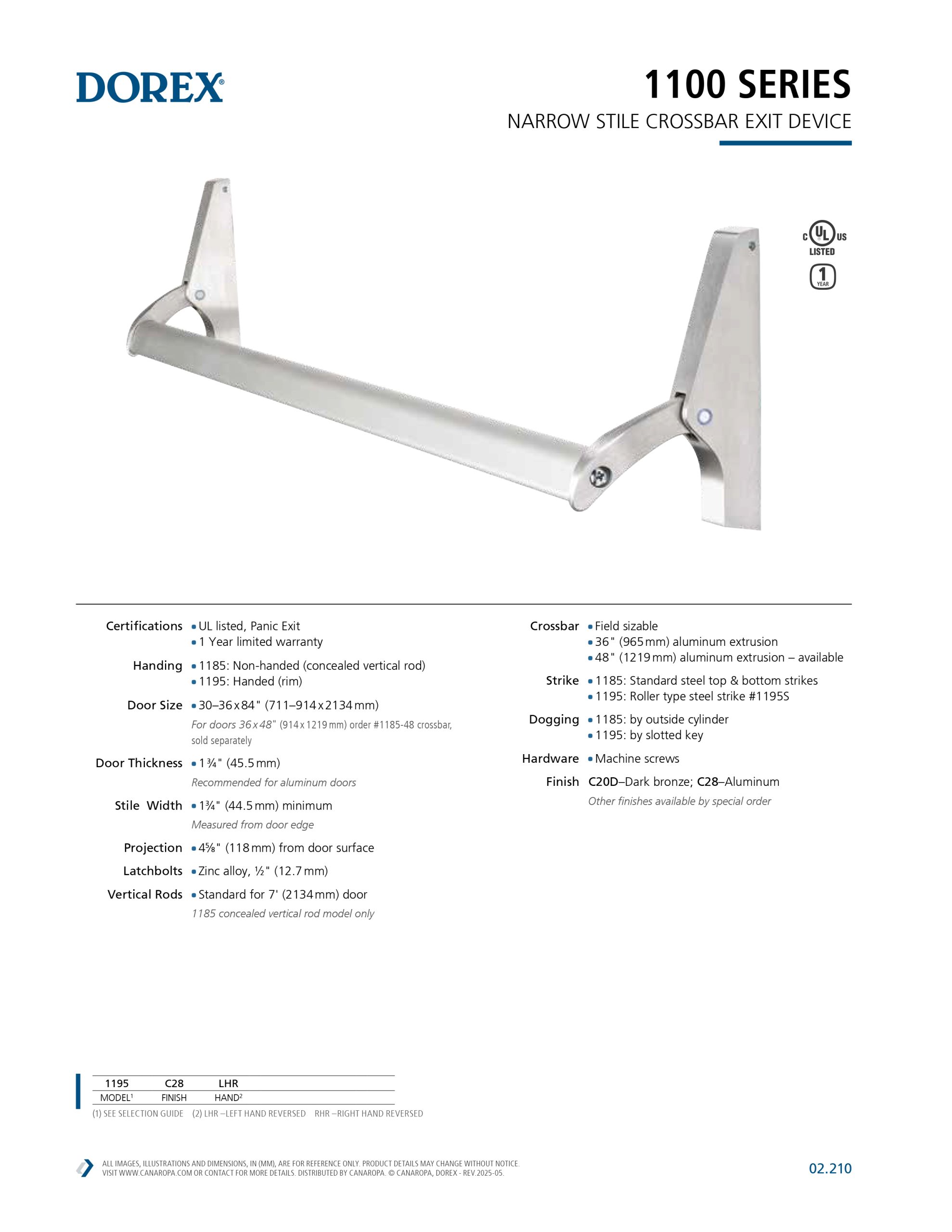

Dorex 1100 Series Narrow Stile Crossbar EXIT Device
$215.00 – $255.00
Share this:
The DOREX 1100 crossbar exit device is ideal for moderate traffic applications on narrow or wide stile aluminum doors.
- UL listed, Panic Hardware
- 1-Year warranty
- For aluminum doors
- Crossbar type:
» Rim model (handed)
» Concealed vertical rod model (non-handed) - Field sizable 36″ (913 mm) aluminum cross bar
» 48″ (1219 mm) cross bar available, sold separately - Zinc alloy latch bolt, 1⁄2″ (12.7 mm) throw
- Stainless steel springs
- Latch dogging by slotted key or outside cylinder

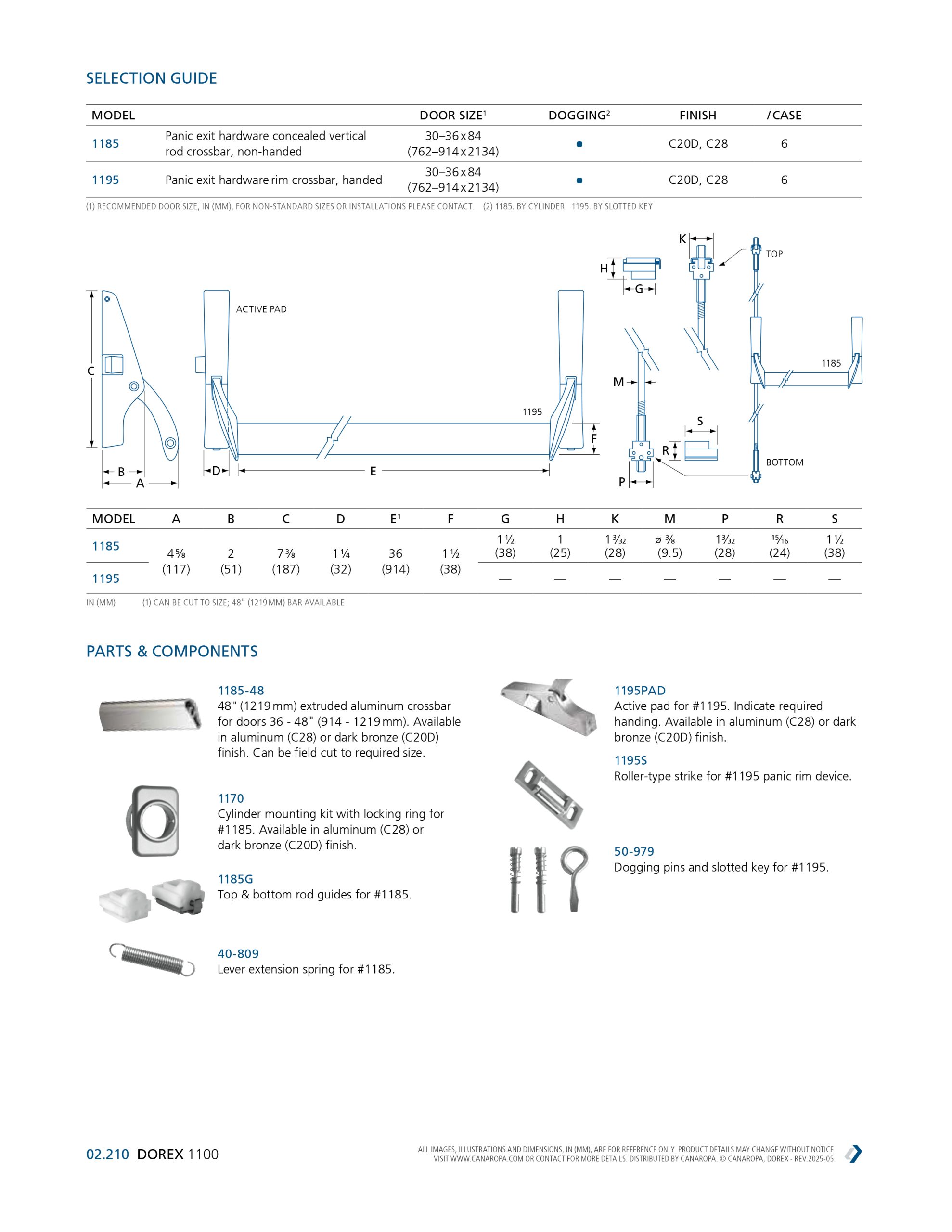

Models:
1185Panic concealed vertical rod exit device, non-handed
1195Panic rim exit device, handed
| Weight | 6 kg |
|---|---|
| Dimensions | 80 × 30 × 20 cm |
| SIZE: | 36", 48" |
| FINISH: | DURANODIC, ALUMINUM |
