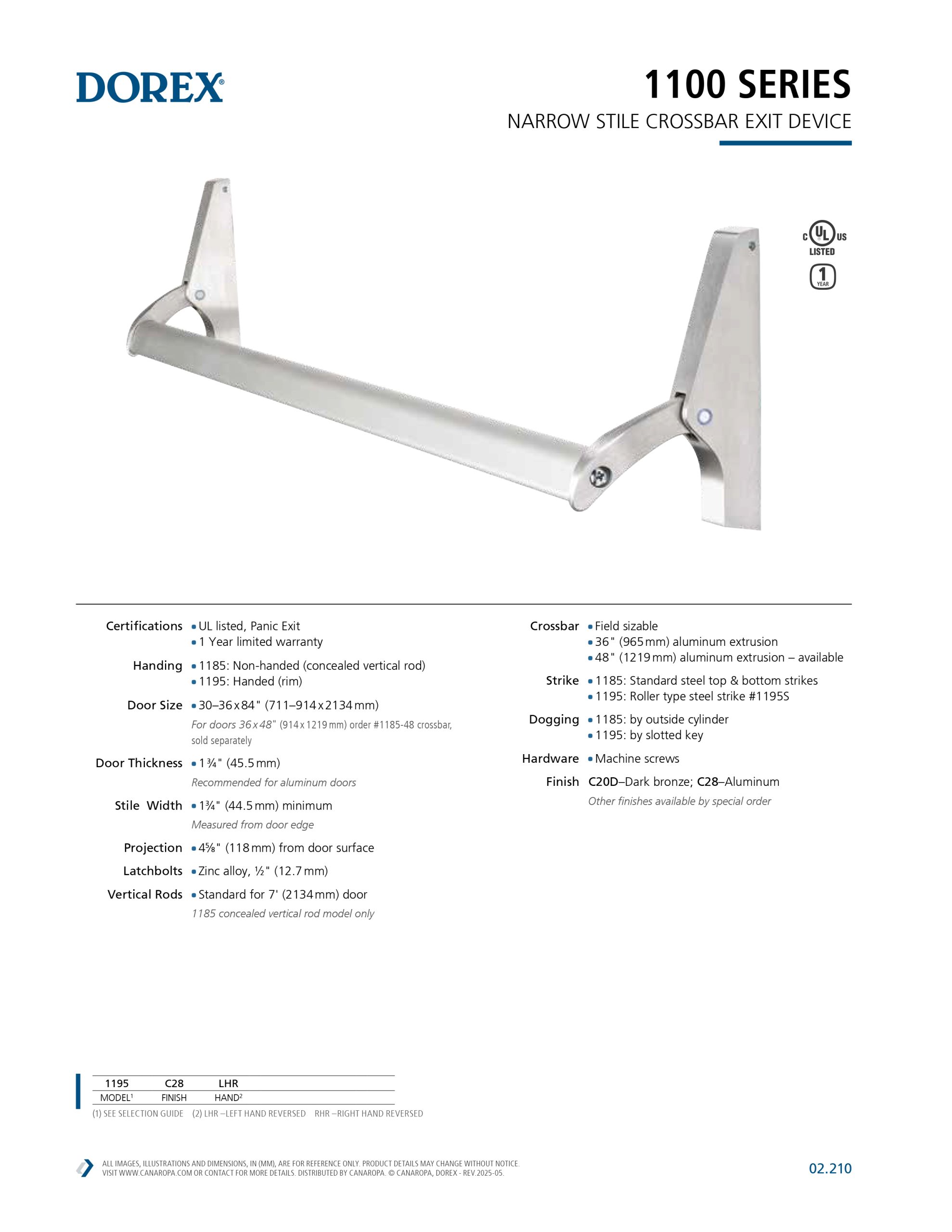

Dorex 1100 Series Narrow Stile Crossbar EXIT Device

$215.00$255.00

SKU: N/A Categories: , ,

Clear
7747FD379-3EF5-4DC3-9AB7-FB895BEEAAF3

The DOREX 1100 crossbar exit device is ideal for moderate traffic applications on narrow or wide stile aluminum doors.

  • UL listed, Panic Hardware
  • 1-Year warranty
  • For aluminum doors
  • Crossbar type:
    » Rim model (handed)
    » Concealed vertical rod model (non-handed)
  • Field sizable 36″ (913 mm) aluminum cross bar
    » 48″ (1219 mm) cross bar available, sold separately
  • Zinc alloy latch bolt, 12″ (12.7 mm) throw
  • Stainless steel springs
  • Latch dogging by slotted key or outside cylinder

Models:

1185Panic concealed vertical rod exit device, non-handed
1195Panic rim exit device, handed

Weight 6 lbs
Dimensions 80 × 30 × 20 in
SIZE:

36", 48"

FINISH:

DURANODIC, ALUMINUM
