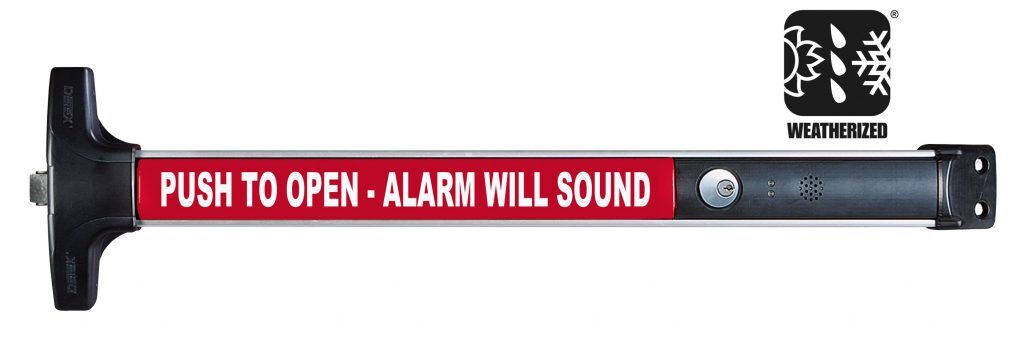

The Weatherized Exit Alarm with Battery (EB W) option is designed for doors and gates requiring a stand alone, battery powered, alarmed, weatherized panic device. The 100dB alarm will sound when someone attempts to exit, alerting management to the unauthorized exit. The internal alarm with both remote bypass and remote signaling capabilities is ideal for applications where both security and life safety are a concern. In addition to listing as UL panic and fire exit hardware device, this device conforms to UL1034-34 Temperature Section 34, UL1034-54 Dust Section 54, MIL-STD 810F, Method 506.4 (driving rain test); MIL-STD 810F, Method 509.4 (salt fog test) and UBC standard 7-2 (positive pressure).

Benefits:

• Weather resistant loss prevention hardware designed for use in outdoor or wet environments
• Fast and easy installation saves time and money
• Angled end cap deflects damage away from device

• Patented mounting plate and strike locator replaces paper templates
• Controls foot traffic to deter unauthorized exits and reduces employee and customer theft

• Rugged, durable, corrosionresistant design reduces maintenance
• Aesthetically pleasing design for almost any door or gate in any décor
• Provides reliable loss prevention protection 24 hours a day

Features:

• Powered by standard 9-volt battery
• Stainless steel, self-latching bolt

• Tamper-resistant, immersion- proof security switches
• Covers a 161 door prep
• Plated steel, anodized aluminum and ABS components endure heavy use and exposure to the elements

• Built-in inhibitors prevent ABS fading and weakening, typically caused by exposure to extreme temperatures and UV rays
• 100dB alarm
• Indefinite alarm requiring manual rearm or variable 2 min. alarm duration with auto re-arm
• Cylinder dogging standard (can also be ordered less dogging)

• Visual and audible arming indicators
• Tamper-resistant housing protects electronics, battery and internal hardware, preventing manipulation
• Tapered design sheds rainwater
• Visual and audible low battery alert
• Armed and disarmed field selectable status indicator

Mechanical Options:

• CD – Cylinder Dogging (Std.)
• LD – Less Dogging
• 36 – Fits 36″ Door Width (Std.)
• 48 – Fits 48″ Door Width
• F – 3-Hour Fire Rated
• H – Hurricane Rated
• 99 – Surface Strike (Std.)
• 98 – Semi Mortise Strike

• Available with 628 Base Rail Extrusion (Std.)
• Available with 711 (Black) Base Rail Extrusion
• FC3W – Weatherized 3’ Flex Conduit Kit, mounts to device end cap
• FC10W – Weatherized 10’ Flex Conduit Kit, mounts to device end cap For full list of available mechanical options, see How To Order page
