Adams Rite Narrow Stile Concealed Vertical Rod Exit Device in Clear-Aluminum Stile Glass Door (ADAM-861136628)
$793.00
PRODUCT DESCRIPTION:

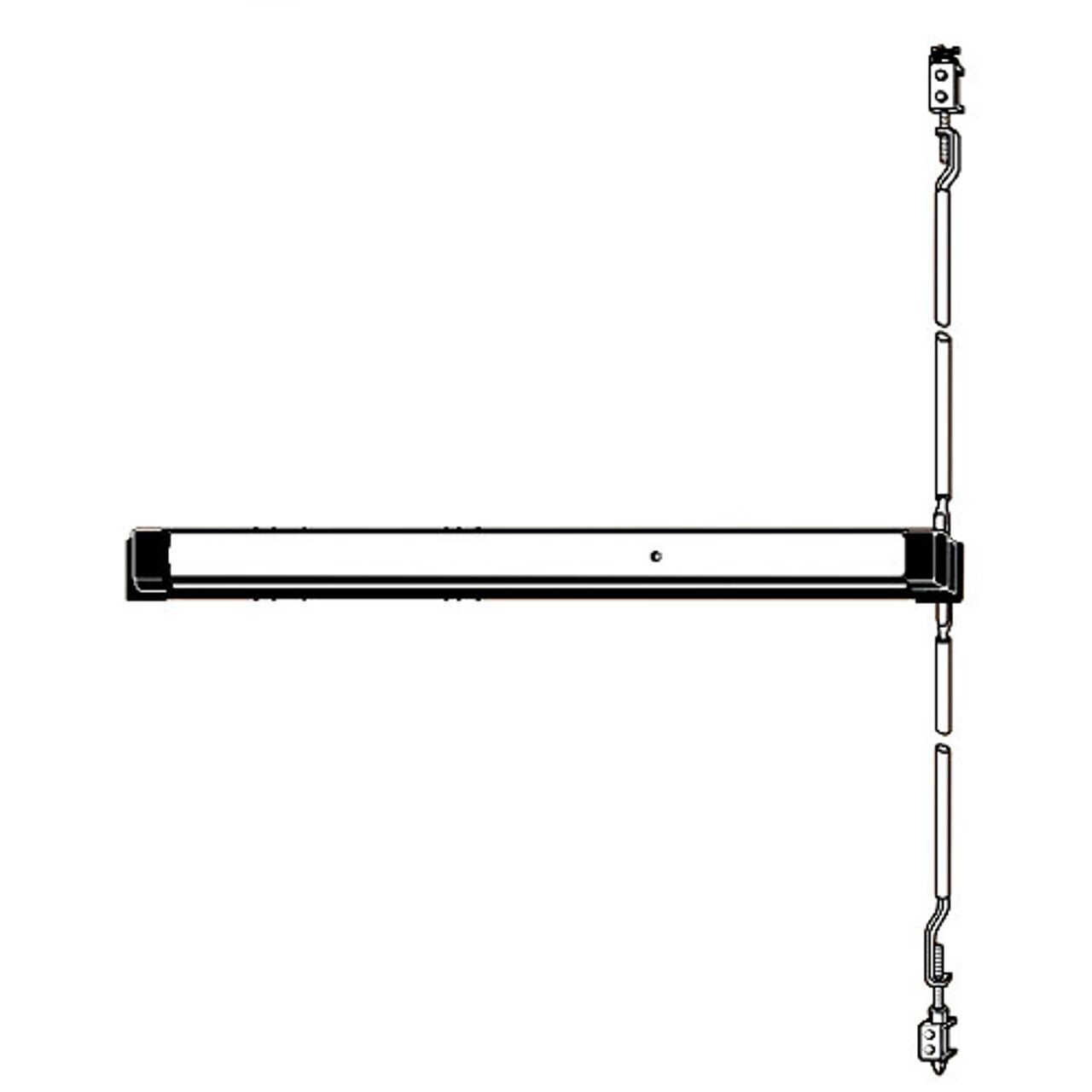

8611-36-628 Adams Rite Narrow Stile Concealed Vertical Rod Exit Device in Clear Anodized Finish
The 8611-36-628 series Exit Device has patented top latching mechanism that interlocks the door to frame with strong and durable construction for a high level of security. It is clean with unobtrusive design and is very easy to install. It also has adjustable steel rods protected in contoured covers.
Door Width:3 Feet
Color:Aluminum
Fire Rated:Non Fire Rated
Monitoring:No Monitor
Handing:Non Handed
Share this:
Benefits and Features:
- Clear Anodized Pushbar Finish
- Pushbar length: 36 inches
- Life safety
- Door Height: Standard unit adjustable for doors up to 66″ above the selected bar height
- Door Thickness: Suits 1-3/4″ standard up to 2-1/4″
- Stile Width: Minimum 2″ Stile
- Projection: 2-5/8″ when fully projected, 1-5/8″ when dogged
- Non-handed operation and lever entry trim is field reversible
- Patented top latching mechanism interlocks the door to frame
- Strong and durable construction for a high level of security
- Adjustable steel rods protected in contoured covers
- Easy to install with clean and unobtrusive design
- Standard rod bar
- Grade 1 strength
- Standard self-tapping screws fastener
- Standard dogging with hex key
- No monitoring switch feature
- 5 year limited manufacturer’s warranty is included
| Weight | 6 kg |
|---|---|
| Dimensions | 95 × 20 × 10 cm |
