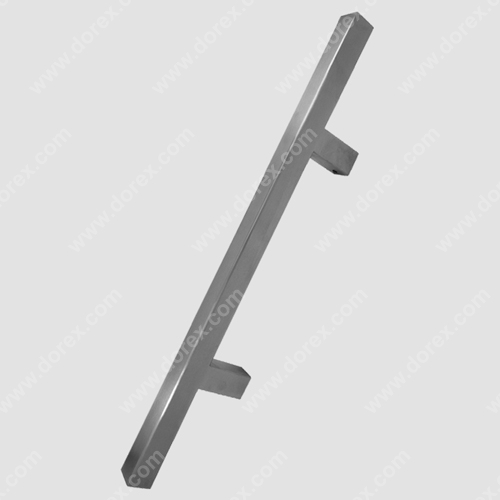

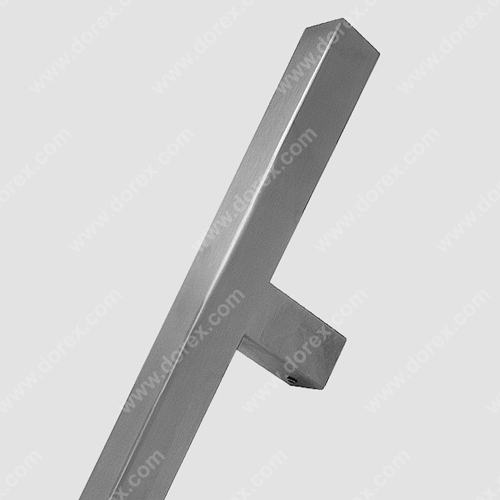

Dorex 19Q-E Ladder Type Door Pulls SQ
$32.90 – $638.60
Dorex 19Q-E Ladder Type Door Pulls SQ
1 1⁄2 x 1″ (38 x 25.4 mm)
Share this:
Dorex 19Q-E Ladder Type Door Pulls SQ
- For wood or metal doors 1 3⁄8 – 2 1⁄4” (35 – 57 mm) thick
- For glass doors 5⁄16 – 1⁄2″ (8 –13 mm) thick
- 304 Stainless steel
- Available in paired or single pulls
- Single pulls are thru-bolt mounted
- All necessary mounting hardware included
- Packaged in an eco-friendly, fully recyclable, box
18R-PBOLT-630
Single 31⁄8″ (86 mm) 5/16-18 UNC bolt with stainless steel end-cap and gaskets for single-pull installation on wood or metal doors up to 21⁄4″(57 mm) thick.
18R-PBOLT2-630
Single 17⁄8″ (47 mm) 5/16-18 UNC bolt with stainless steel end-cap and gaskets for single-pull installation on glass doors up to 13⁄8″ (35 mm) thick.
Single 17⁄8″ (47 mm) 5/16-18 UNC bolt with stainless steel end-cap and gaskets for single-pull installation on glass doors up to 13⁄8″ (35 mm) thick.
18-PBOLT4
Back to back thru-bolt extension kit. For wood or metal doors 2 1⁄4″ (57 mm) thick.
Back to back thru-bolt extension kit. For wood or metal doors 2 1⁄4″ (57 mm) thick.
| Select | 19Q-18-20R Back To Back Bolt Kit, 19Q-18-20R Single Bolt Kit-630, Ladd Pull Sq 24ctc 36In 1 1-4 Pair sss, Ladd Pull Sq 36ctc 48In 1 1-4 Pair sss, Ladd Pull Sq 48ctc 60In 1 1-4 Pair sss, Ladd Pull Sq 60ctc 72In 1 1-4 Pair sss, Ladd Pull Sq 72ctc 84In 1 1-4 Pair sss |
|---|
